Chapter 6. Installation and operating information
This section summarizes the installation and operation methods of the 4820 SurePoint
Solution. IBM recommends that you refer to the IBM 4820 SurePoint Solution
Installation and Service Guide for complete instructions.
Option installation
IBM recommends that you install the options for the 4820 SurePoint Solution in the
following order:
1. Manager’s keylock
2. Keypad and MSR
3. Pointing device
4. Audio kit
Note:
You can attach either the MSR or the keypad with MSR to the 4820 SurePoint
Solution.
Cable connections and routing

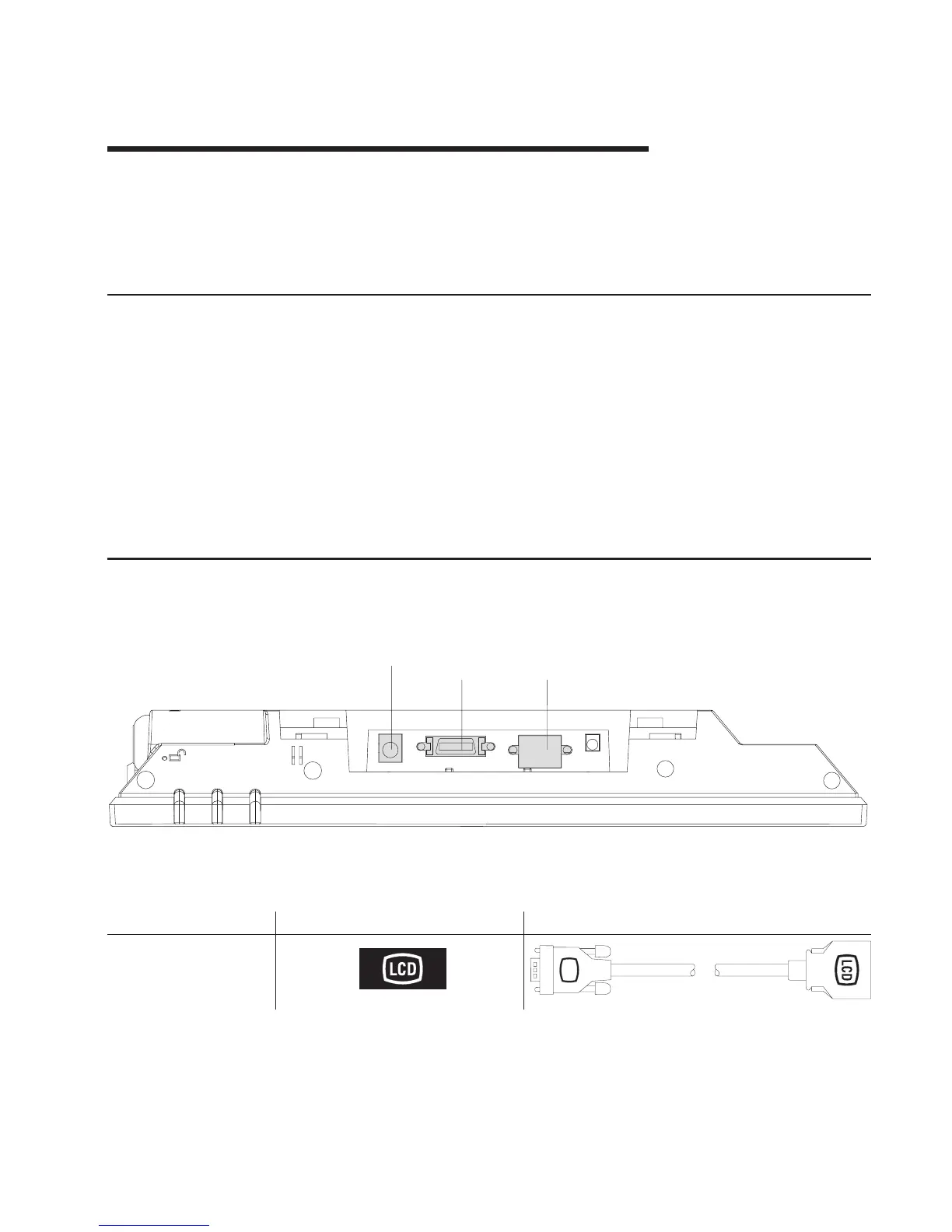

Figure 6-1 shows the view of the cable connections for the 4820 SurePoint Solution.
Table 6-1. Summary of Cable Types, Identifying Icons, and Examples
Type Identifying Icon Cable
Analog
Analog
(Video)
Power
R 485
(Touch/Keypad/MSR)
S
Figure 6-1. View of Model 46D, 46T Cable Connections
