IBM 4820 System Reference Guide

Appendix A. Mounting the pedestal
Mounting the distributed pedestal
The distributed pedestal is available in short and long versions. Both pedestals bolt to
your counter; therefore, installation is the same. Figure A-1 shows the mounting order.
Follow these steps to attach the distributed pedestal to the counter:
1. Using the template provided on Appendix C, “Mounting surface templates,” on page
C-1 mark the screw hole locations for drilling through the counter. Use a 8 mm or
5/16 inch bit to drill the four screw holes.
Pedestal
Mounting surface
Metal support bracket
M6 screws

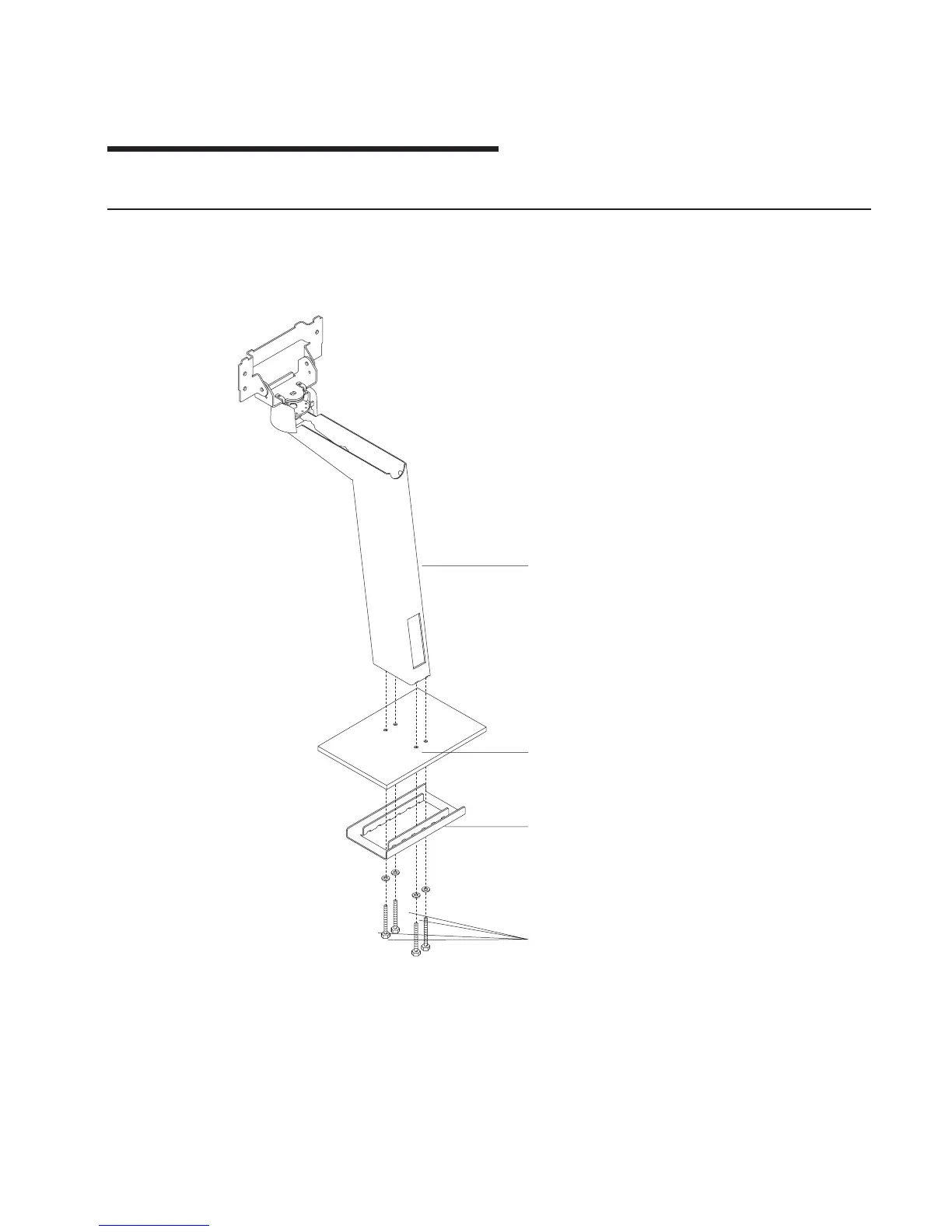

Figure A-1. Distributed pedestal mounting
© Copyright IBM Corp. 1999, 2003 A-1
