Chapter 13. Installation and operating information
This section summarizes the installation and operation methods of the 4820 SurePoint
Solution. IBM recommends that you refer to the IBM 4820 SurePoint Solution
Installation and Service Guide for complete instructions.
Option installation
IBM recommends that you install the options for the 4820 SurePoint Solution in the
following order:
1. Manager’s keylock
2. Keypad and MSR
3. Pointing device
4. Audio kit
Note:
You can attach either the MSR or the keypad with MSR to the 4820 SurePoint
Solution.
Cable connections and routing

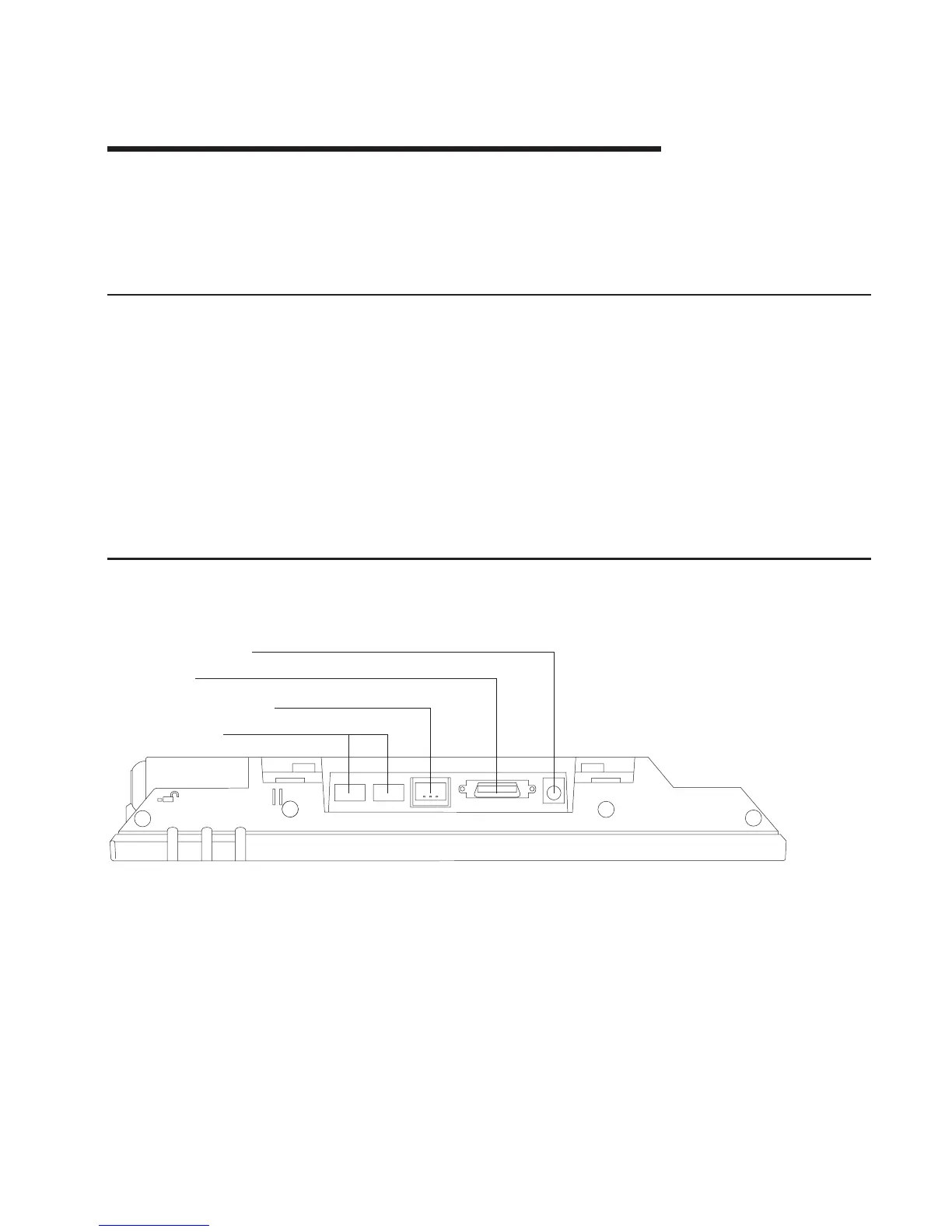

Figure 13-1 shows the view of the cable connections for the 4820 SurePoint Solution.
AUX: power in
Video
USB in / power in
USB (out)
Figure 13-1. Model 4WT, 4GT cable connections
