hardware installation
84 Multi–Platform Interface Feature Operation Guide

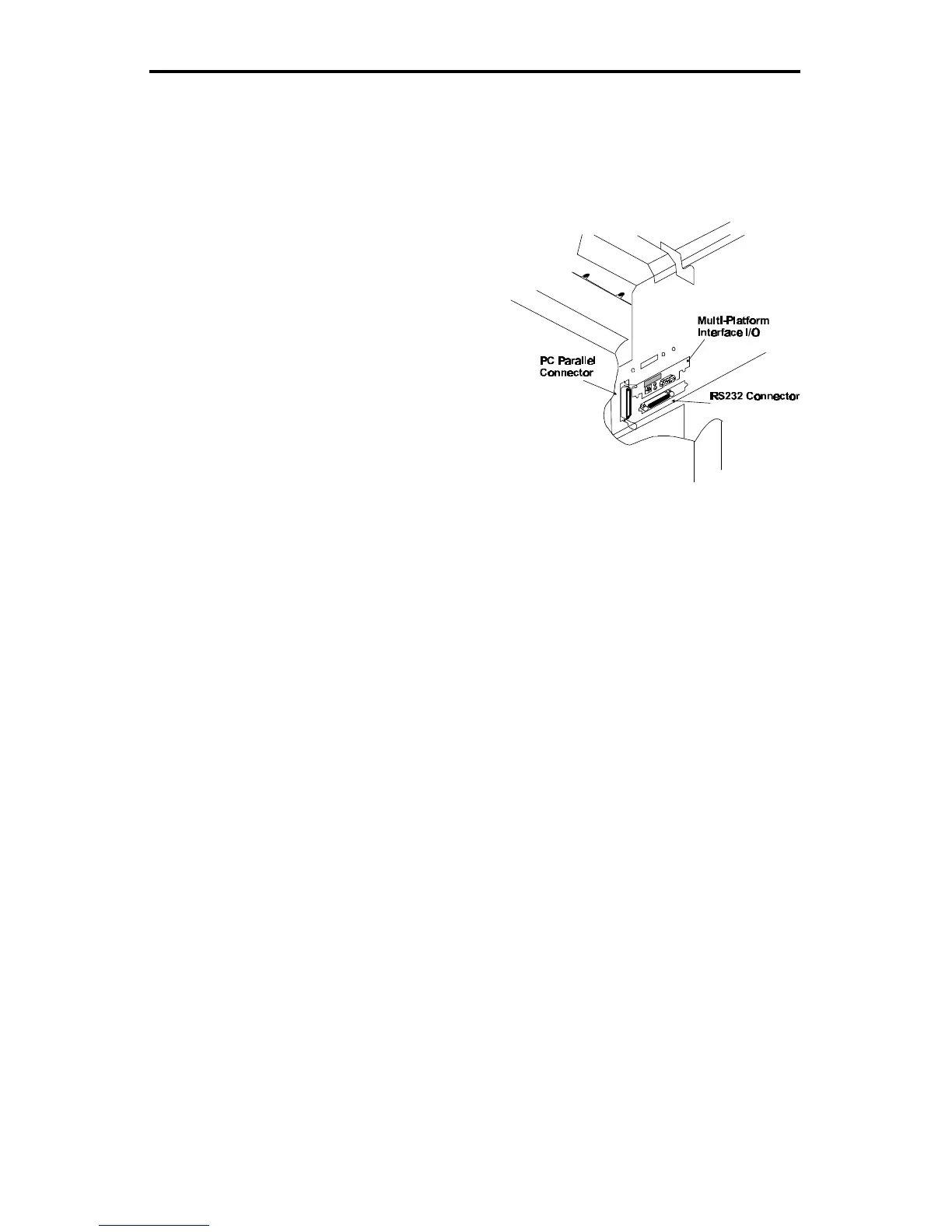

Figure 9 Printer interface area
after installing the
Multi-Platform
Interface
4 Using two of the supplied Phillips
screws, mount the controller I/O
assembly in the area formerly
occupied by the printer's interface
expansion slot cover.
Use the third Phillips screw to mount
the Multi-Platform PCBA to the
standoff, installed earlier, located on
the printer’s mother board next to
connector J111. (See Figure 8 )
5 Connect the printer’s Centronics data
cable to the connector P3 on the Multi-
Platform Interface PCBA. This will
supply connection to the PC
environment.
Make certain that none of the cables are
pinched by the installation of the MPI card.
Attaching the MPI Label
Attach the MPI Label, part number
145594, on the printer, near the MPI. This
label provides information about the MPI
connections and is needed, if service is
required.
