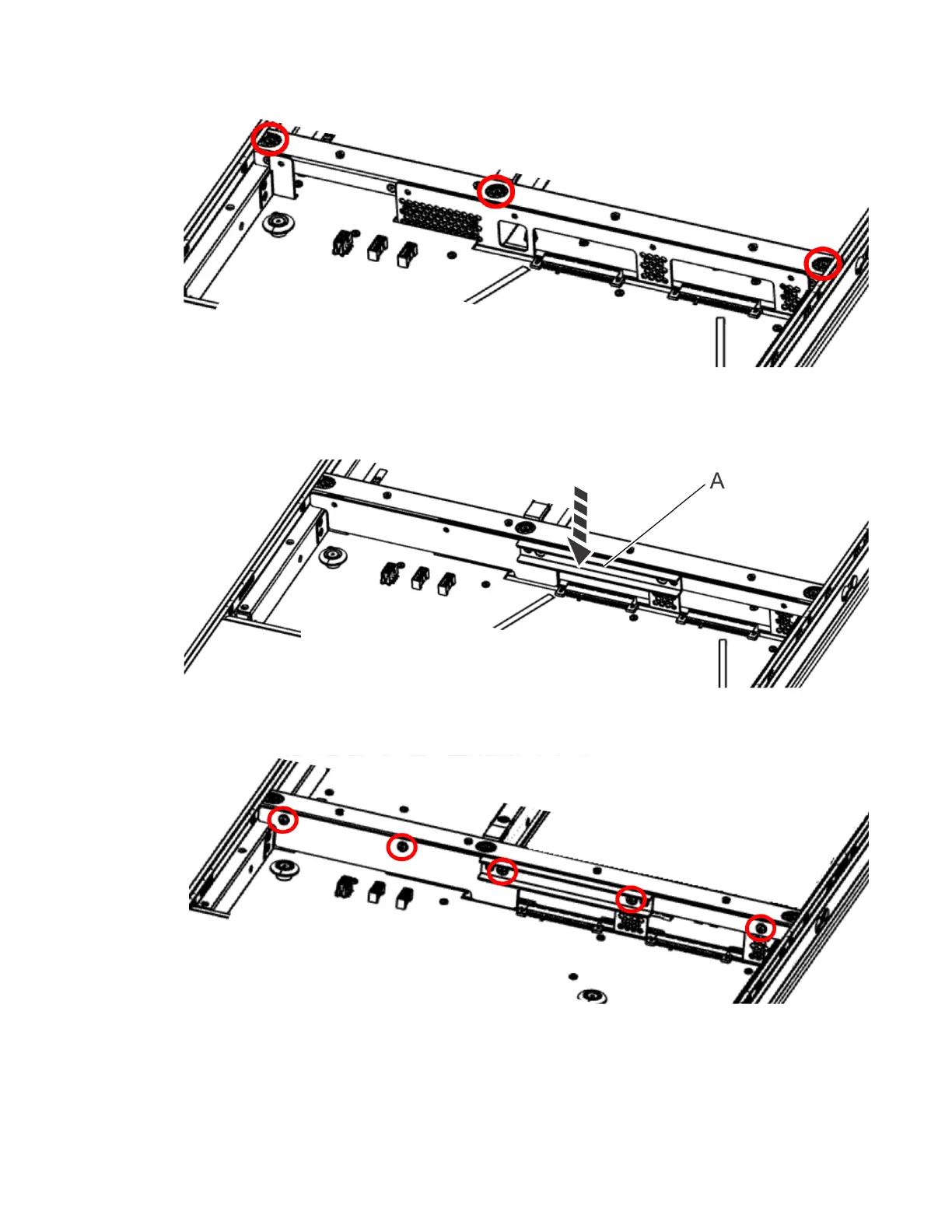

Figure 62. Cross bar top screws
c) Replace the air baffle (A) into the system, placing it against the front side of the cross bar.
Figure 63. Replacing the air baffle
d) Replace the ve screws into the front of the cross bar.
Figure 64. Cross bar front screws
5. Replace the plastic air baffle (A) on the right edge of the system; place it straight down.
48
Power Systems: Servicing the IBM Power Systems HMC (7063-CR2)
