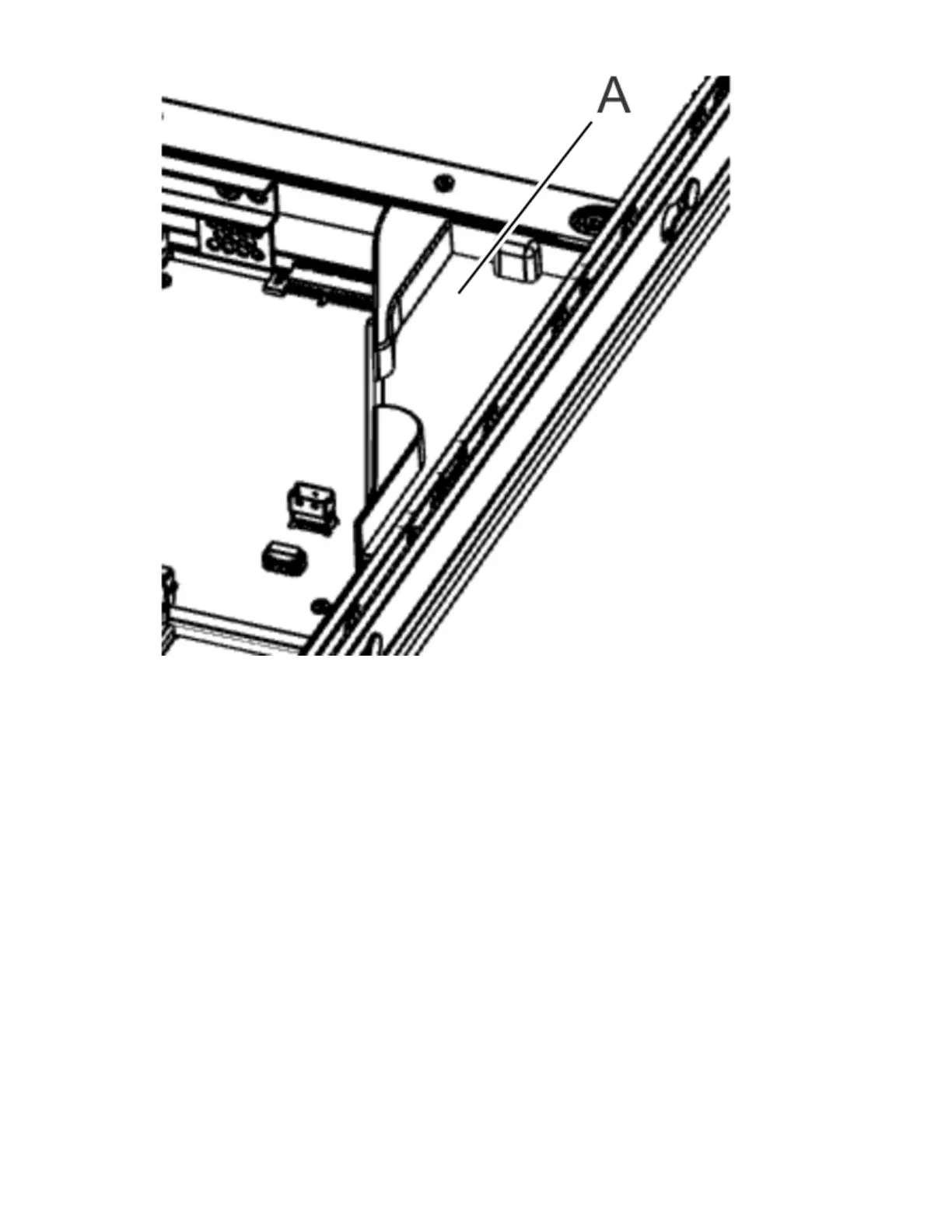

Figure 65. Right air baffle
6. Using your labels, replace the ve cables (A) into the power distribution board. Reconnect the drive
cables to the rear of the drive holder. The USB cable nests inside the control panel power cable in the
right air baffle.
Ensure that the cable latch clips snap into place on the connectors.
Removing and replacing parts in the 7063-CR2
49
