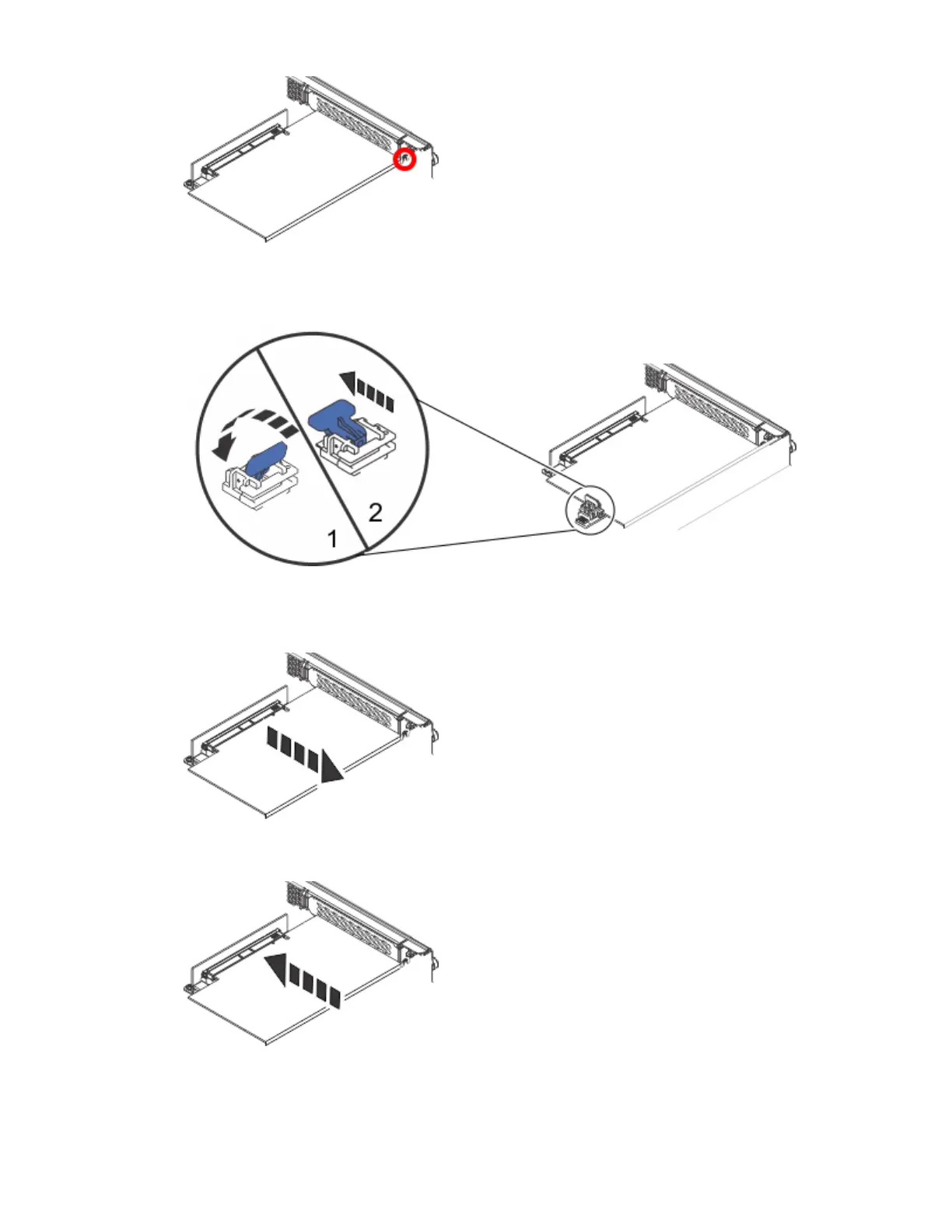

Figure 82. Removing the tail-stock screw
b) Open the retainer clip that secures the PCIe adapter to the PCIe riser, by moving the blue lever to
the unlocked position.
Figure 83. Removing the PCIe adapter retaining latch
c) Move the retainer clip away from the PCIe adapter.
d) Remove the PCIe adapter from the PCIe riser on the old system backplane.
Figure 84. Removing the PCIe adapter
e) Replace the PCIe adapter into the PCIe riser on the new system backplane
Figure 85. Replacing the PCIe adapter
f) Replace the screw that secures the PCIe adapter to the system backplane.
Removing and replacing parts in the 7063-CR2
65
