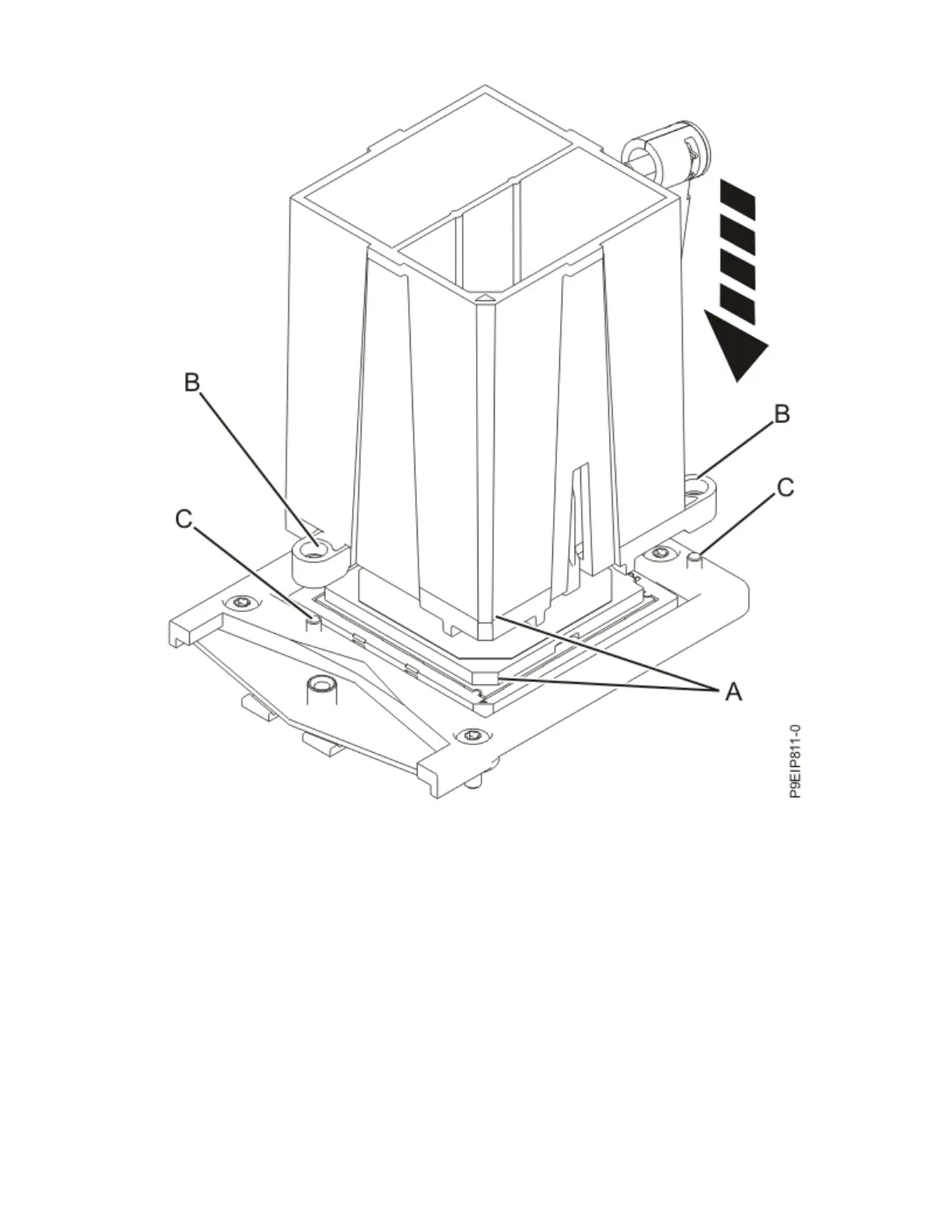

Figure 95. Lowering the removal tool onto the system processor module
11. With the removal tool (A) sitting on top of the system processor module, push down on the tool to
lock the system processor module into the tool as shown in the following gure.
The tool drops slightly when you push down on the system processor module so that the jaws can
grab the bottom of the module. Make sure that both of the tool jaws are locked on the system
processor module. Do not press the blue release tabs until directed to do so later.
