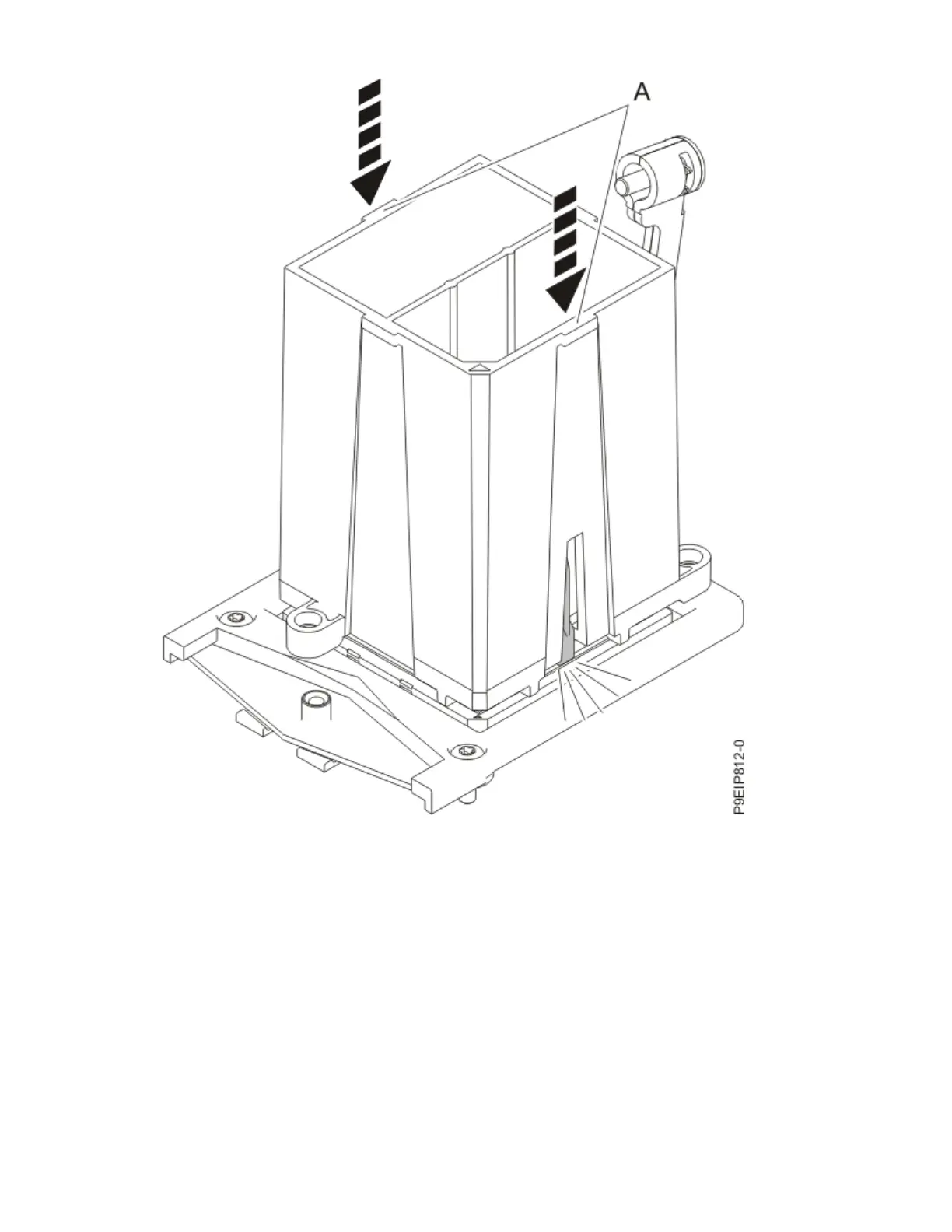

Figure 96. Locking the system processor module into the tool
12. Hold the outside of the tool and lift the tool and system processor module from the socket. Place
them at an angle on the top cover of the system processor module packaging as shown in the
following gure.
Setting the system processor module at an angle on the top cover of the system processor module
packaging will make it easier to pick up and place in the packaging after you replace the system
processor module.
74
Power Systems: Servicing the IBM Power Systems HMC (7063-CR2)
