Rear view

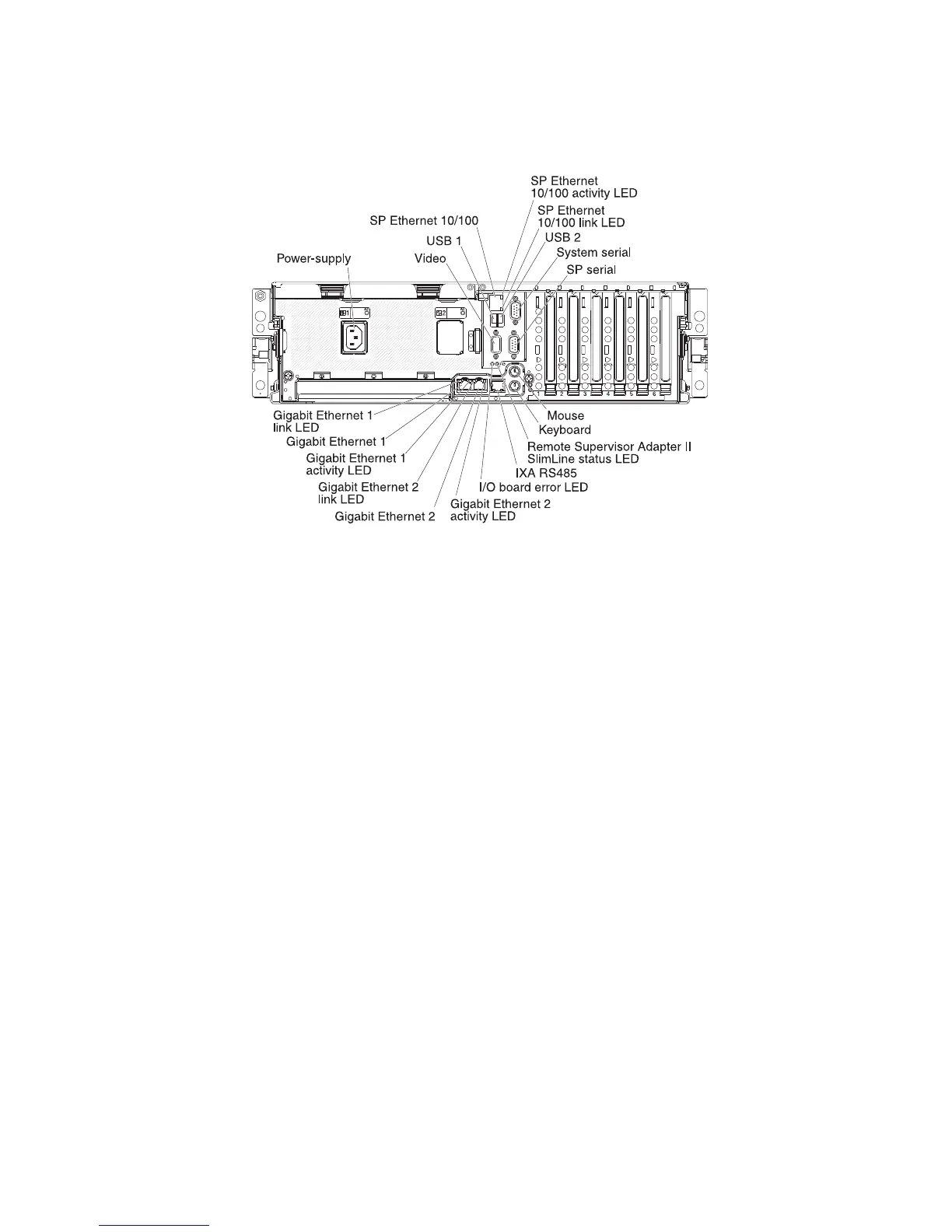

The following illustration shows the connectors and LEDs on the rear of the server.
Power-supply connector: Connect the power cord to this connector.
Video connector: Connect a monitor to this connector.
USB 1 connector: Connect a USB device to this connector.
SP Ethernet 10/100 connector: Use this connector to connect the service
processor to a network.
SP Ethernet 10/100 activity LED: This LED is on the SP Ethernet 10/100
connector. When this LED is lit, it indicates that there is activity between the server
and the network.
SP Ethernet 10/100 link LED: This LED is on the SP Ethernet 10/100 connector.
When this LED is lit, it indicates that there is an active connection on the Ethernet
port.
USB 2 connector: Connect a USB device to this connector.
System serial connector: Connect a 9-pin serial device to this connector.
SP Serial connector: Connect a 9-pin serial device to this connector.
Mouse connector: Connect a mouse or other device to this connector.
Keyboard connector: Connect a keyboard to this connector.
Remote Supervisor Adapter II SlimLine status LED: This LED is on the I/O
board and is visible on the rear of the server. When this LED flashes, it indicates
that there is activity on the Remote Supervisor Adapter II SlimLine. When this LED
is lit continuously, it indicates that there is a problem with the Remote Supervisor
Adapter II SlimLine.
6 IBM xSeries 366 Type 8863: Problem Determination and Service Guide
