Microprocessor-board connectors and LEDs

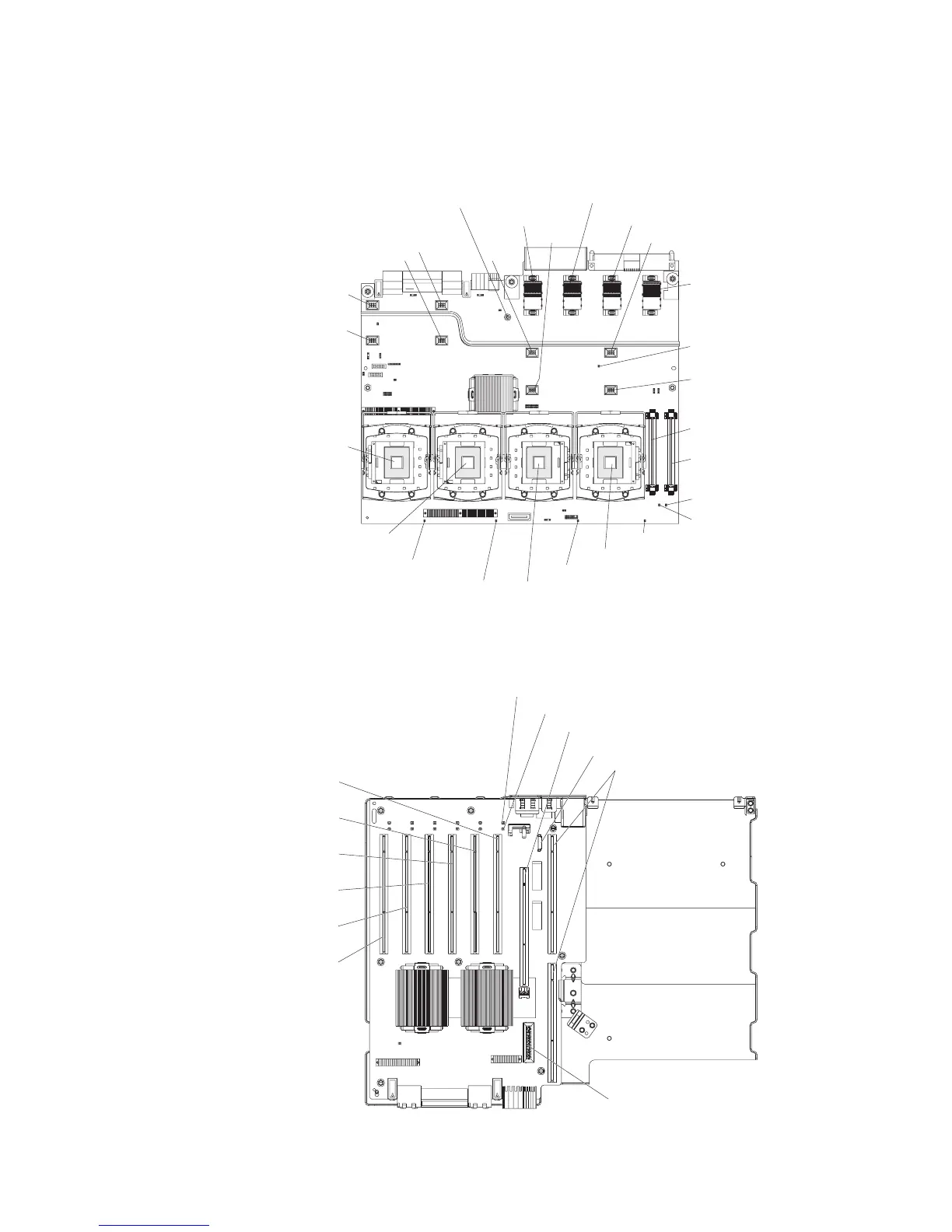

The following illustration shows the connectors and LEDs on the microprocessor
board.
Microprocessor 4
VRM connector
Microprocessor 3
VRM connector
Microprocessor card
error LED
Microprocessor 4 socket
Microprocessor 3 socket
Microprocessor 3 error LED
VRM 3 error LED
VRM 4 error LED
Microprocessor 4 error LED
Microprocessor 2
error LED
Microprocessor 1
error LED
Microprocessor 1
socket
Microprocessor 2
socket
Fan 4
Fan 8
Fan 3
Fan 7
Fan 6
Fan 2
Fan 5
Fan 1
Memory
card 1
Memory
card 2
Memory
card 3
Memory
card 4
Light path diagnostics
button
11 22
44
33
PCI-X board connectors
The following illustration shows the connectors on the PCI-X board.
PCI-X slot 6
266 MHz 64-bit
PCI-X slot 5
266 MHz 64-bit
PCI-X slot 4
266 MHz 64-bit
PCI-X slot 3
266 MHz 64-bit
PCI-X slot 2
266 MHz 64-bit
PCI slot 1
266 MHz 64-bit
Attention LED
Power LED
SAS internal power
cable connector
ServeRAID-8i
I/O board
Active PCI cable
10 IBM xSeries 366 Type 8863: Problem Determination and Service Guide
