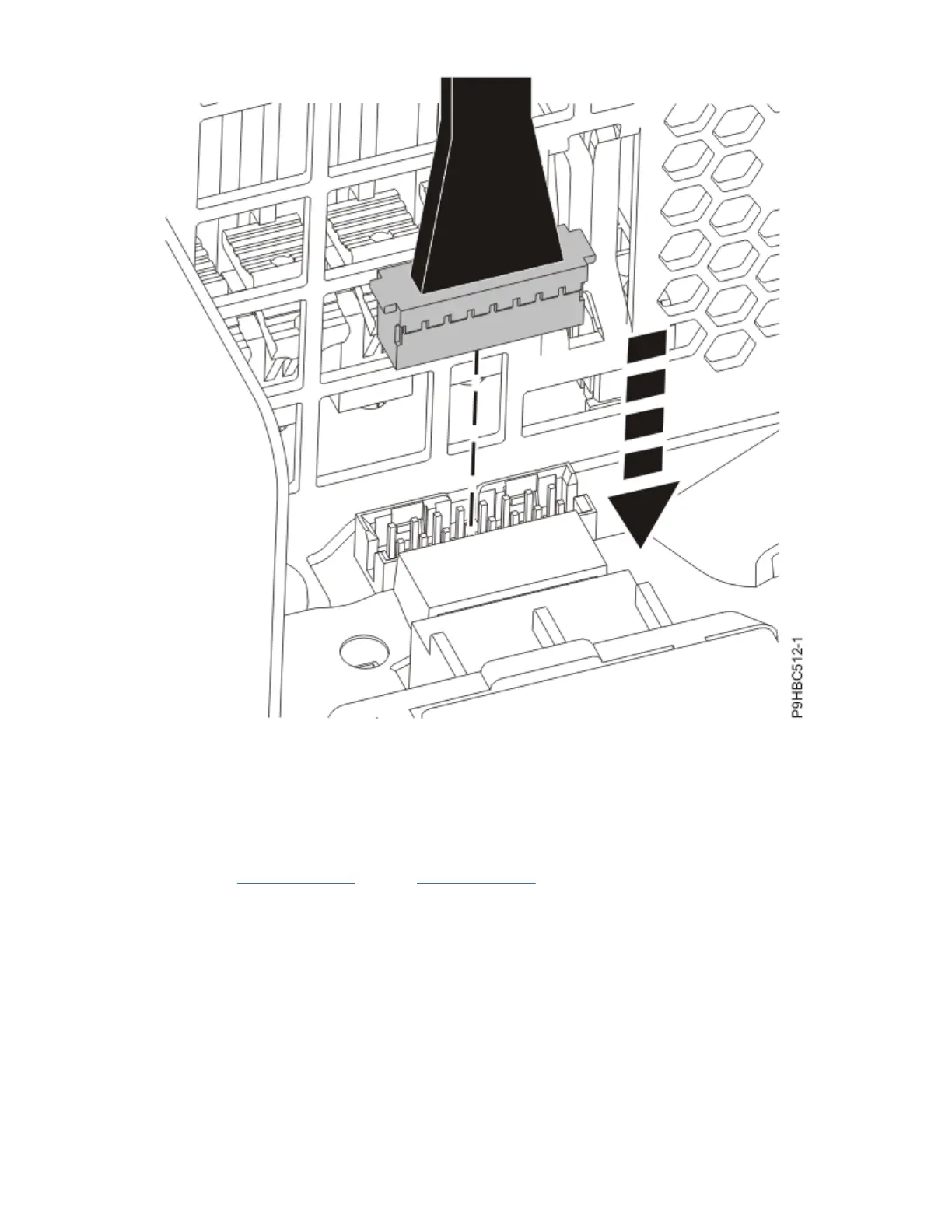

Figure 79. Connecting the control panel cable to the system backplane
9. Replace the fans into their slots:
a) Using your hand to support the bottom of the fan, slide the fan into the system. See the following
gure.
b) Rotate the fan handle (A) in the direction shown, and then press the handle until the latch locks in
place. See the following gure.
c) Repeat “9.a” on page 79 through “9.b” on page 79 for the other fans.
Removing and replacing the system backplane in the 5105-22E, 9008-22L, 9009-22A, 9009-22G, 9223-22H,
or 9223-22S 79
