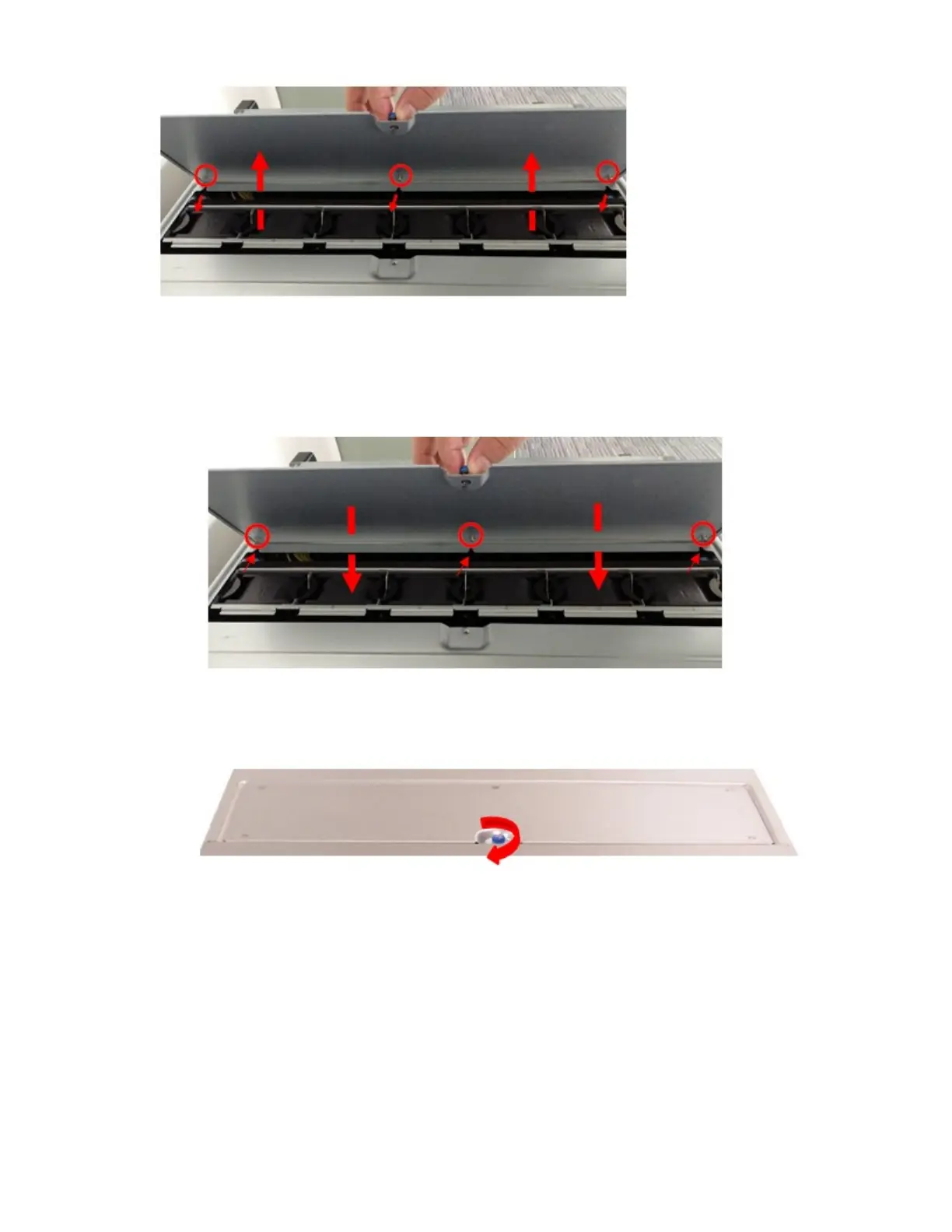

Figure 28. Remove fan cover
a. To install or replace the fan cover:
1) Align the fan cover pins to the cover slots. Slide the cover back, then down until it ts securely,
as shown in the following gure.
Figure 29. Install fan cover
2) Tighten the thumbscrew to secure the fan cover to the appliance cover as shown in the following
gure.
Figure 30. Secure fan cover
Replace appliance components
This section describes the procedures for replacing appliance components.
Replacing the power supply unit (PSU)
This appliance has two main redundant, hot-pluggable Power Supply Units (PSU) to support the entire
system. The following steps cover how to replace a PSU.
1. Unplug the power cord from the PDU and then from the PSU.
2. Pull down the PSU handle and squeeze the thumb latch towards the handle.
28
IBM Cloud Object Storage System: A10/C10/M10 Appliance Manual
