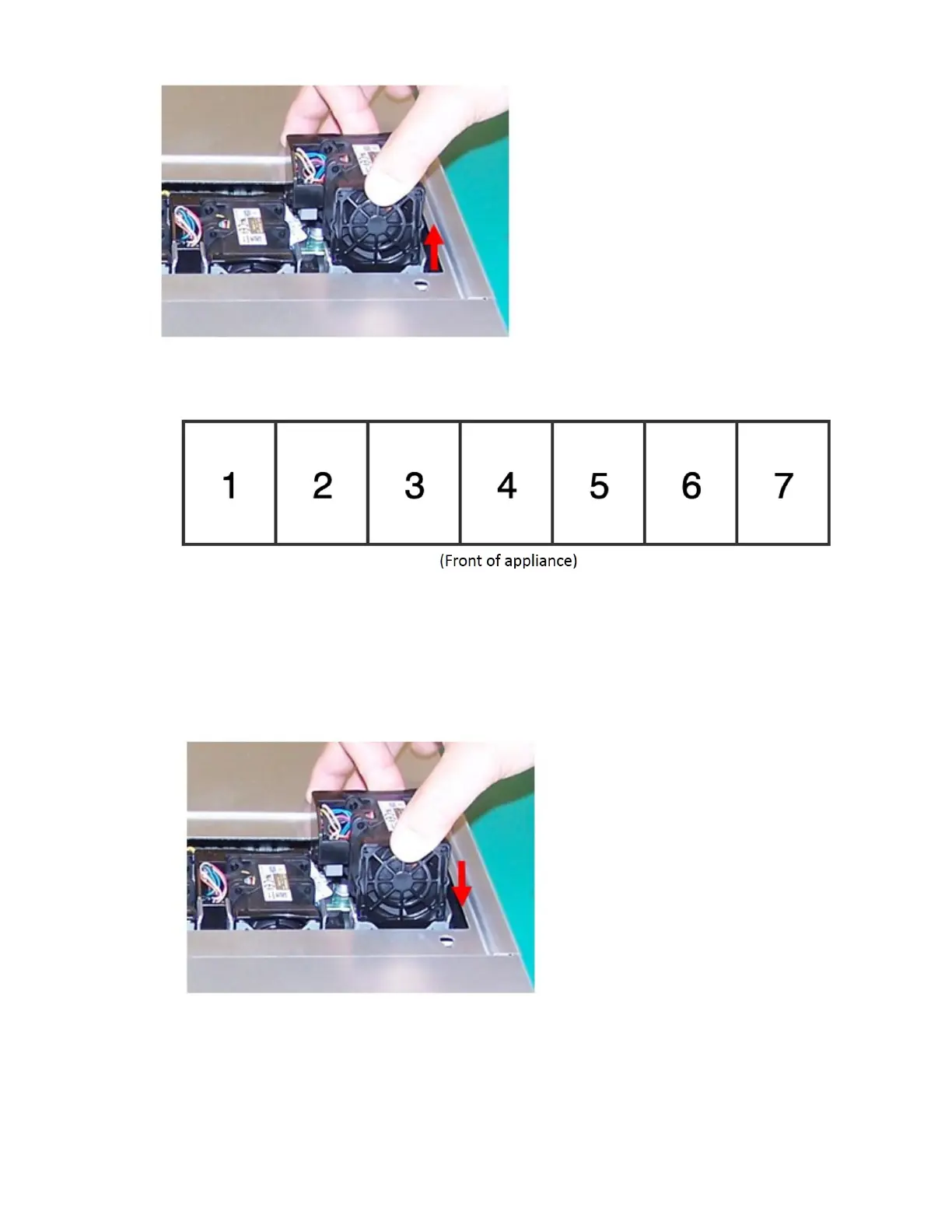

Figure 34. Removing a fan
Figure 35. 1U fan enumeration
4. To install a fan, follow these steps:
a. Grasp the fan unit by the nger holds and place it straight down in its slot, as shown in the following
gure.
b. Make sure the fan connector is seated properly in the connection socket on the slot to secure it.
c. Replace the fan cover (see the section on Removing or Replacing the Fan Cover).
Figure 36. Install a fan
Remove and install PCIe riser cards
This section describes the process replacing and installing PCIe riser cards.
To remove a card, follow these steps as shown in the following gure.
Chapter 6. Maintain the appliance
31
