4-18
Processor(Celeron)
NOTE
: Determine the type of processor you are installing and make sure the
jumpers are set correctly. Run the Setup Utility after correctly
installing a processor.
ATTENTION:
Processors are sensitive to static discharge.

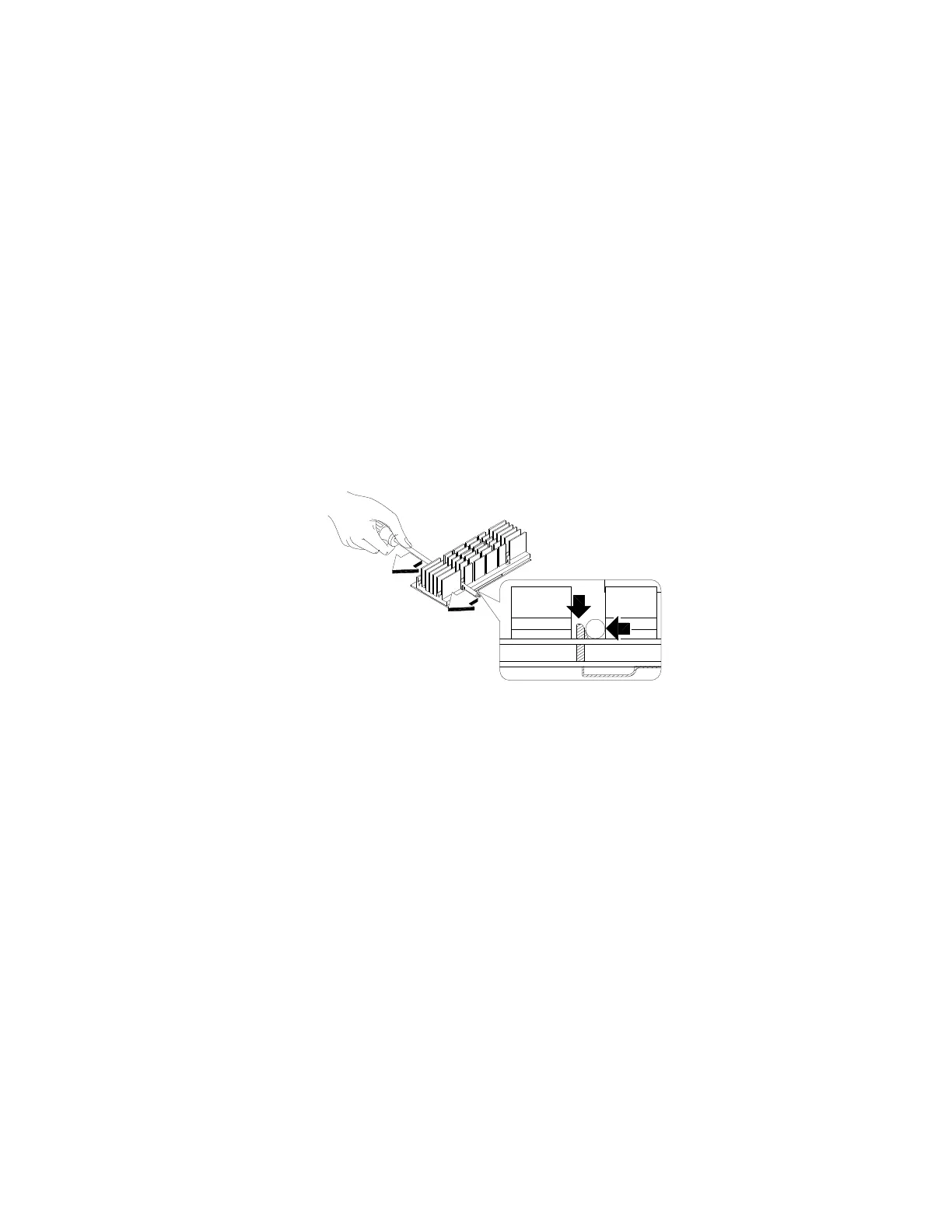

Use a screw driver to unlock the heat sink from the CPU cartridge, by
releasing the faster. Press the faster nodes one by one to release all four
of them.
Figure 4- 16 Removing the heat sink
Release the retention cover from the CPU connector on the system board
by pulling out both sides.
