5-8
Machine Type 2153/Celeron System Board
Layout
NOTE:
The blackened pin of a jumper represents pin 1.

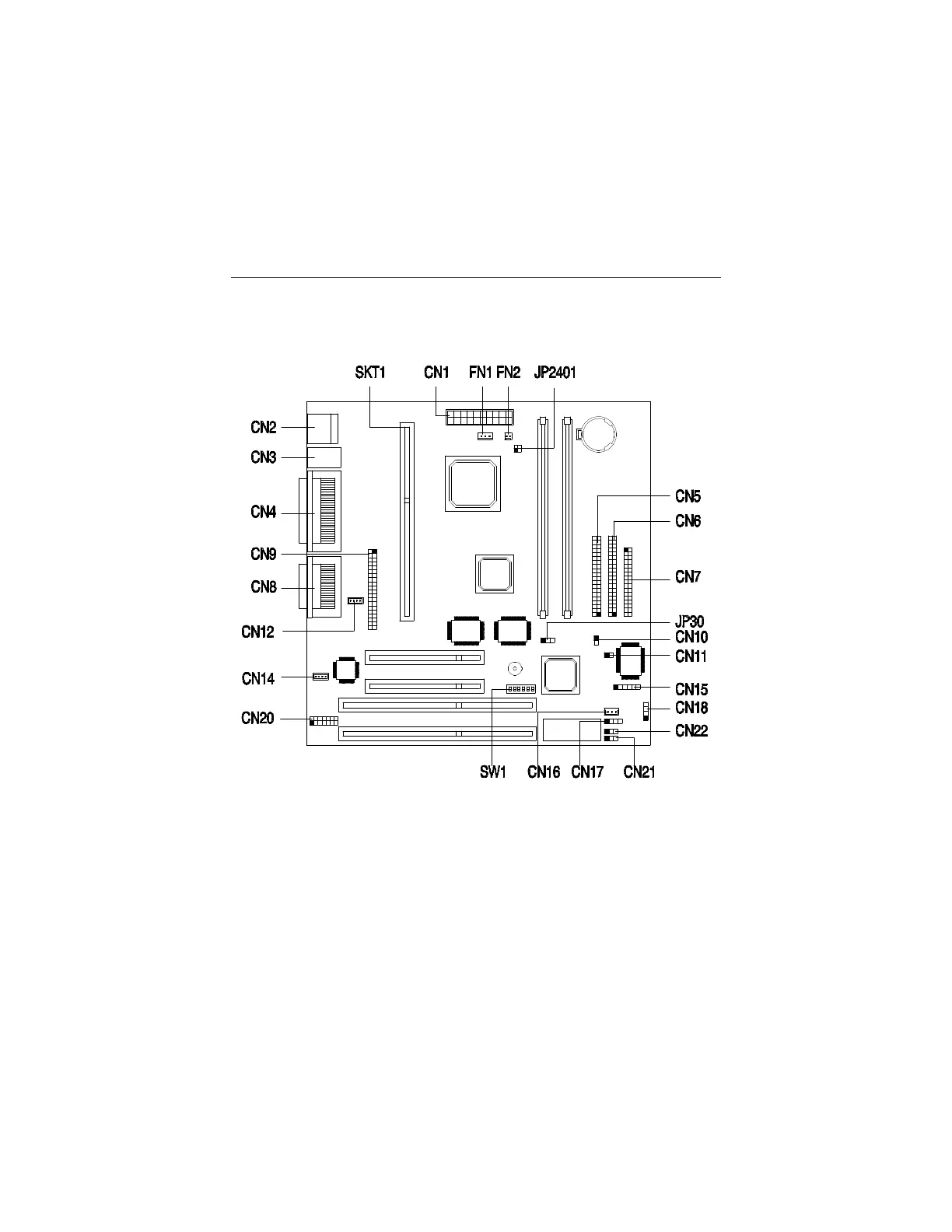

Figure 5- 2 Machine Type 2153 System Board Jumper and Connector
Locations
