Repair Information 4-27
Identifying the Parts of the System Unit

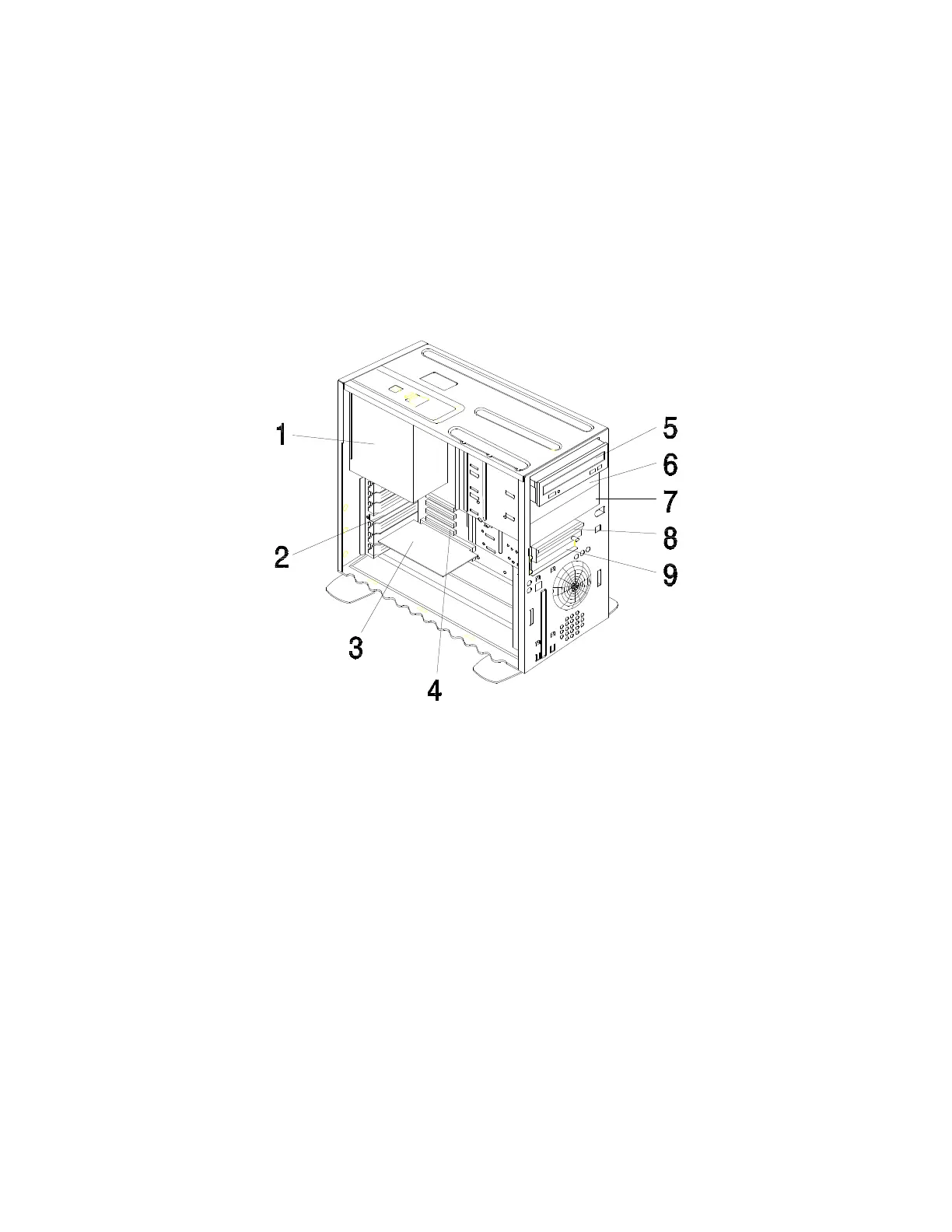

Figure 4- 26 The parts of the system unit
This computer system has five bays that can hold up to three 5.25-inch and
two 3.5-inch drives. Additional devices can be installed in the empty bays.
Diskette drives in this unit use the standard diskette advanced technology
(ATX) interface. Hard disk drives in this unit use an Integrated Drive
Electronics (IDE) ATX interface. This computer supports the American
National Standards Institute (ANSI) standard for ATX attachment disk drives.
It also has interface slots for installation of additional card devices. Industry
standard architecture (ISA) and Peripheral Component Interconnect (PCI)
adapter cards are both supported.
1.
Switching Power Supply.
The system comes with a 145-watt switching power supply.
