5-28
DVD-ROM Drive

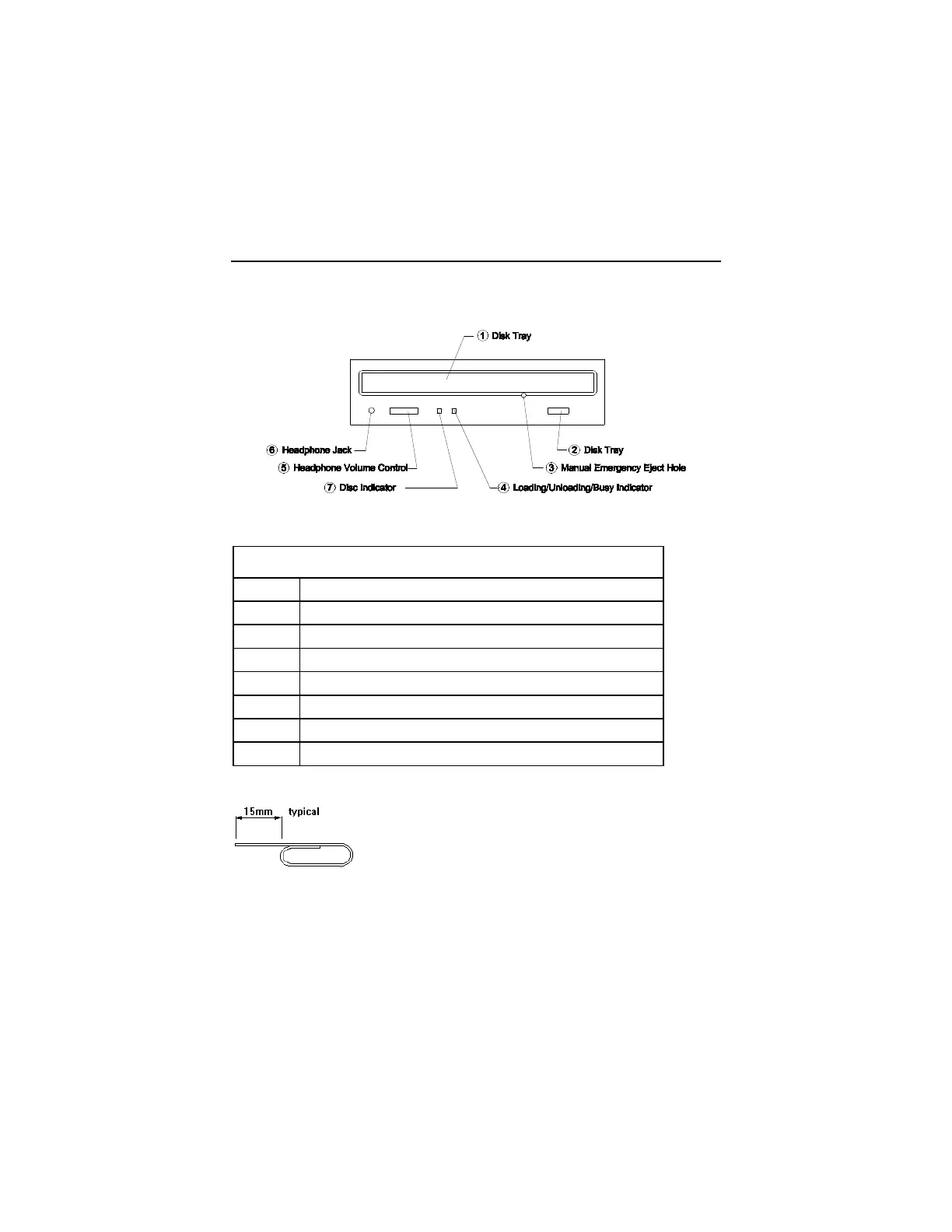

Figure 5- 19 DVD-ROM Front Panel
Table 5- 21 DVD-ROM Front Panel Introduction
Item Description
1 Disc Tray
2 Open/Close Button
3 Loading/Unloading/Busy Indicator
4 Loading/Unloading
5 Headphone Volume Control
6 Headphone Jack
7 Disc Indicator
DVD-ROM Emergency-exit
If for any reason the tray does not eject
automatically, insert and press an eject-bar inside
the emergency eject hole to manually eject the
tray. A straightened paper clip with a diameter of
1.2 mm (typical) can be used as an eject-bar.
NOTE:
Make sure to turn off the power before manual disc eject operation.
