4-20
NOTE: Installing the processor
Remove the Celeron processor from its protective packaging.
Attach the heat sink on top of the Celeron processor, after removing the
thermal tape protector at the back of the heat sink, with the wide side
connecting to golden finger.

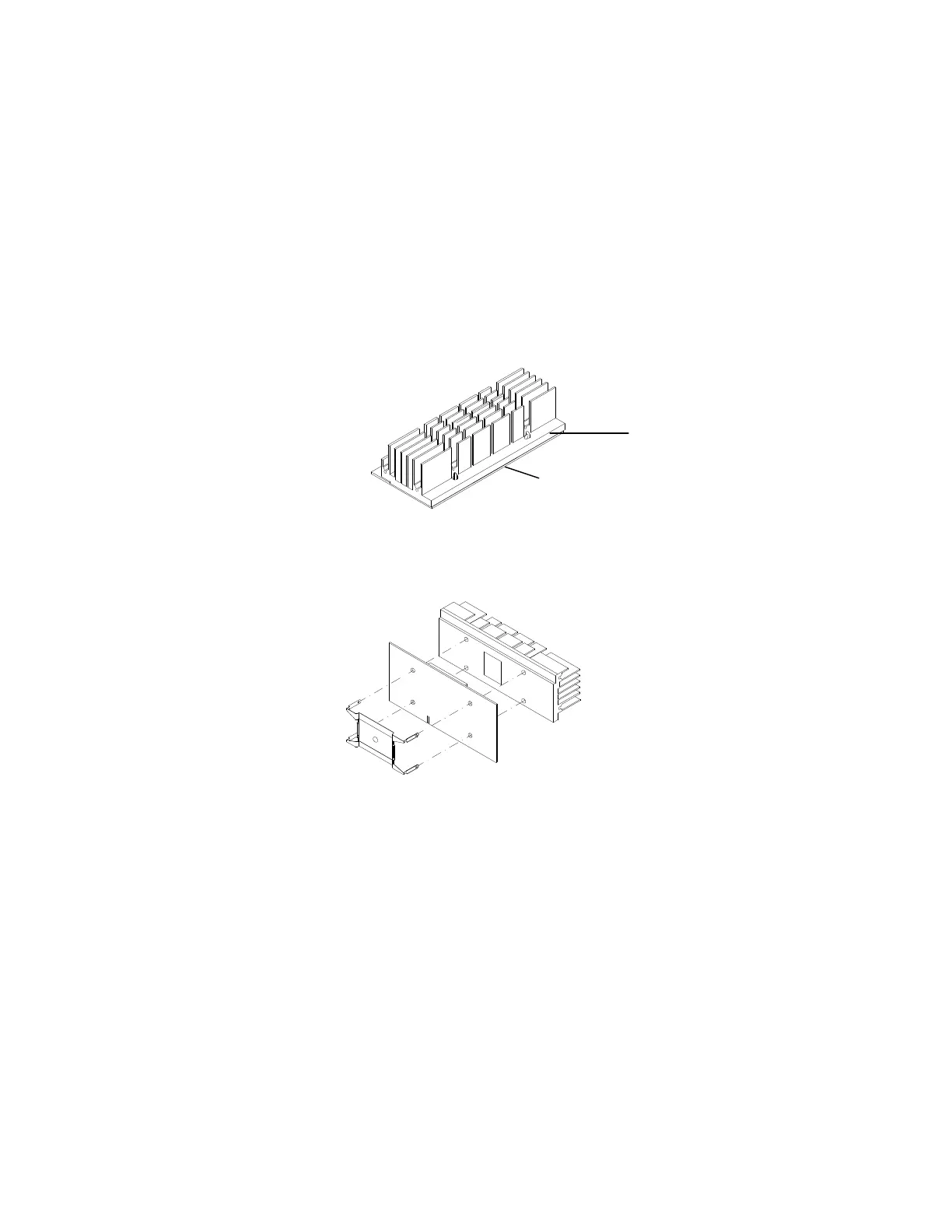

Figure 4- 19 Attaching the heat sink
Press the heat sink and fasteners together to lock the heat sink.
Figure 4- 20 Pressing the heat sink
Place the retention mechanism over the CPU connector on the system
board and press down on it until it clicks into place.
Press the four plastic rivets to secure the retention mechanism. Make sure
all four rivets are properly inserted into the holes on the system board.
wider side
golden finger
