5-16

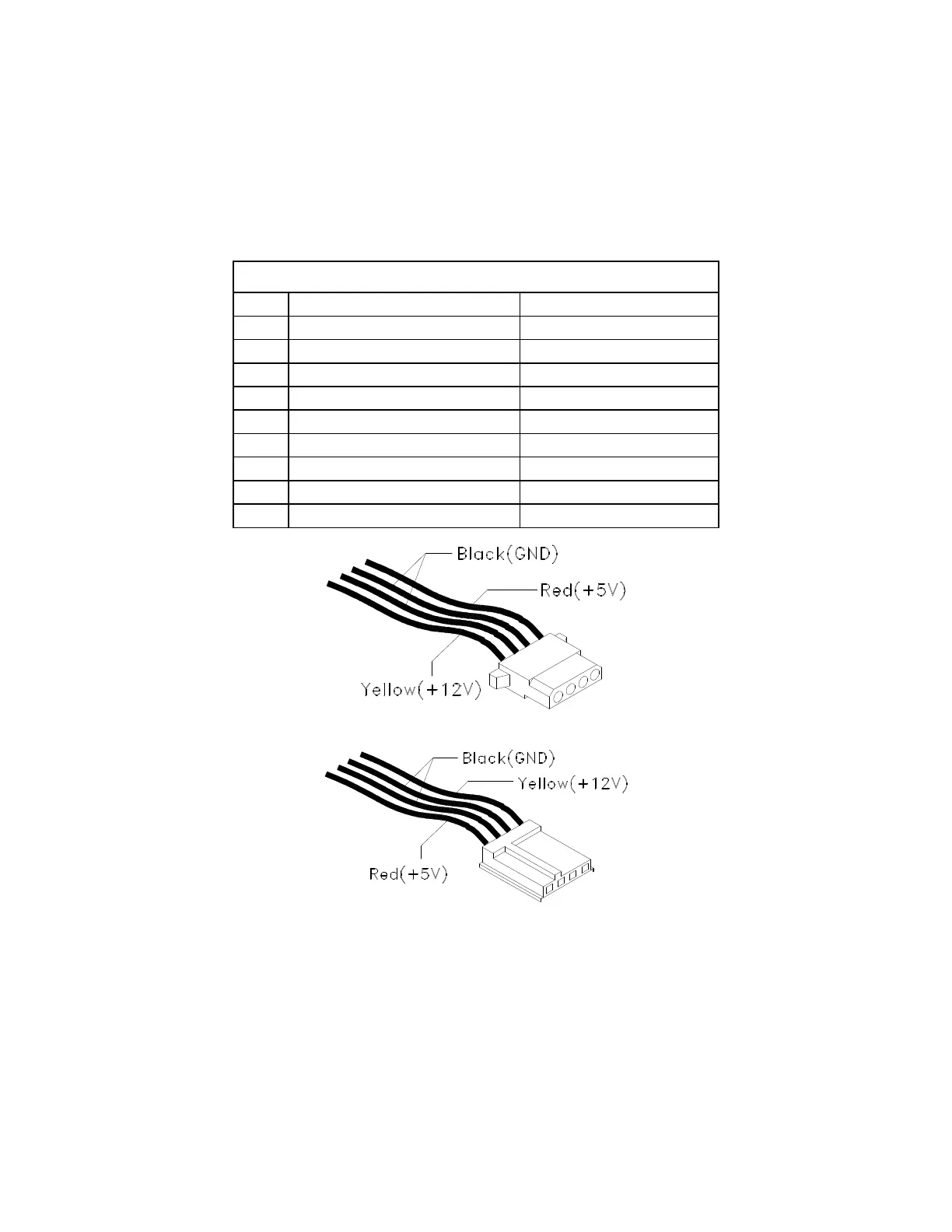

Table 5- 8 Power Supply Output Pin Assignment
Pin Function Color
12 -12V Blue
13 Ground Black
14 Power-on control, 5V default Green
15 Ground Black
16 Ground Black
17 Ground Black
18 -5V White
19 +5Vdc Red
20 +5Vdc Red
Figure 5- 5 Hard Drive or CD/DVD-ROM Power Cable Connector
Figure 5- 6 3.5-In. Diskette Drive Power Cable Connector
