key, see the documentation that comes with your virtualization software. For more
information about virtualization, see http://www.ibm.com/itsolutions/
virtualization/.
1. Before you begin, read “Safety” on page v and “Installation guidelines” on
page 23.
2. Install the scalability tray in the topmost blade server (see “Installing the
scalability tray” for instructions).
3. Attach the blade server with the scalability tray to the bottom blade server.
Blade server
cover release
Blade server
cover release
Cover
Pins

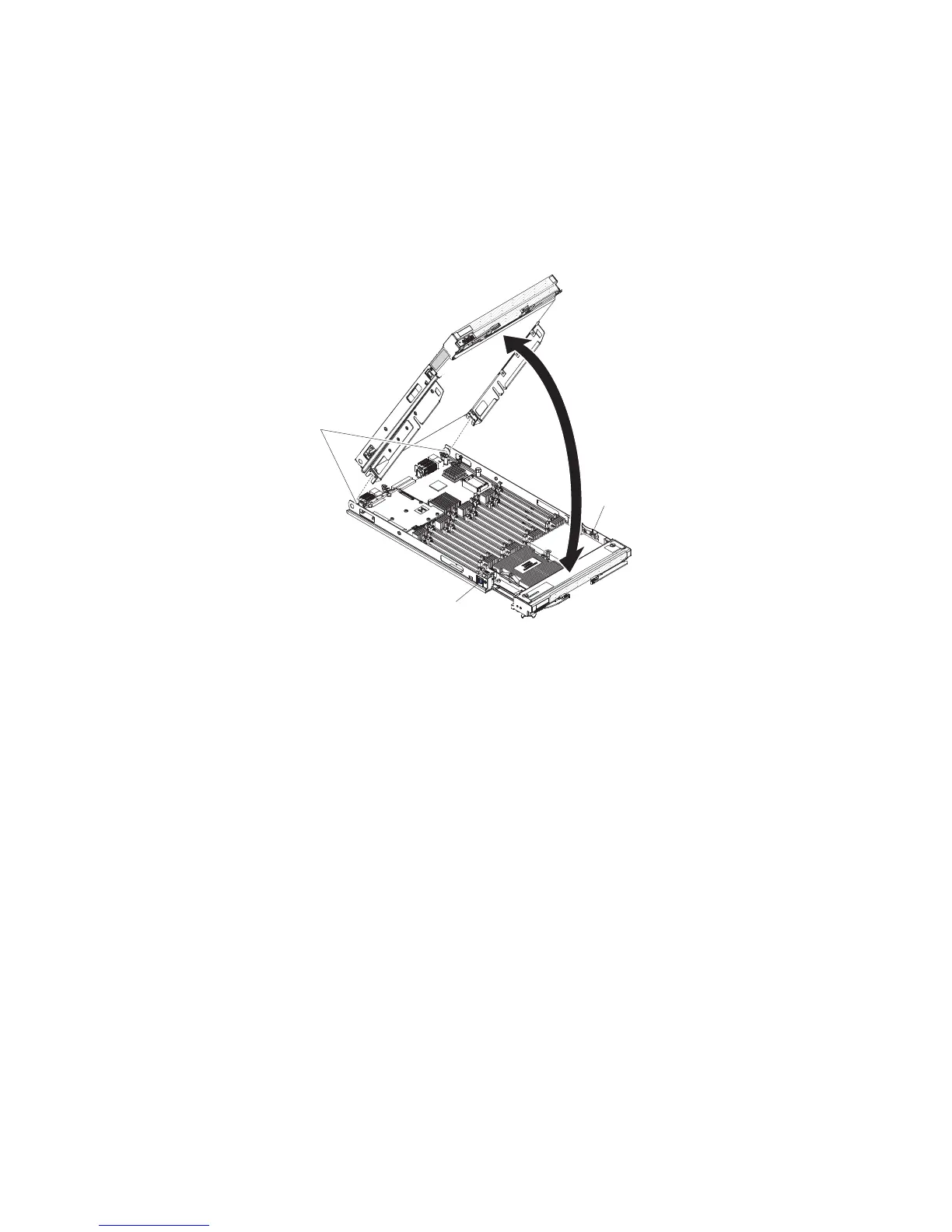

a. Lower the topmost blade server so that the slots at the rear slide down onto
the pins at the rear of the bottom blade server, as shown in the illustration.
b. Pivot the topmost blade server to the closed position, as shown in the
illustration, until it clicks into place.
4. Install the 2-node scalability card (see “Installing the 2-node scalability card” on
page 60).
Installing the scalability tray
Use this information to install the scalability tray on a blade server.
To install the scalability tray, complete the following steps:
1. Before you begin, read “Safety” on page v and “Installation guidelines” on
page 23.
2. Carefully lay the blade server on a flat, static-protective surface, with the cover
side down.
3. Align the scalability tray flush with the blade server in the start position. The
pins on the scalability tray should be aligned with the holes in the blade server.
Chapter 3. Installing optional devices 59
