3. Release the lower handles (rotate the lower handles down) to allow the blade
servers to sit flat on the work surface.

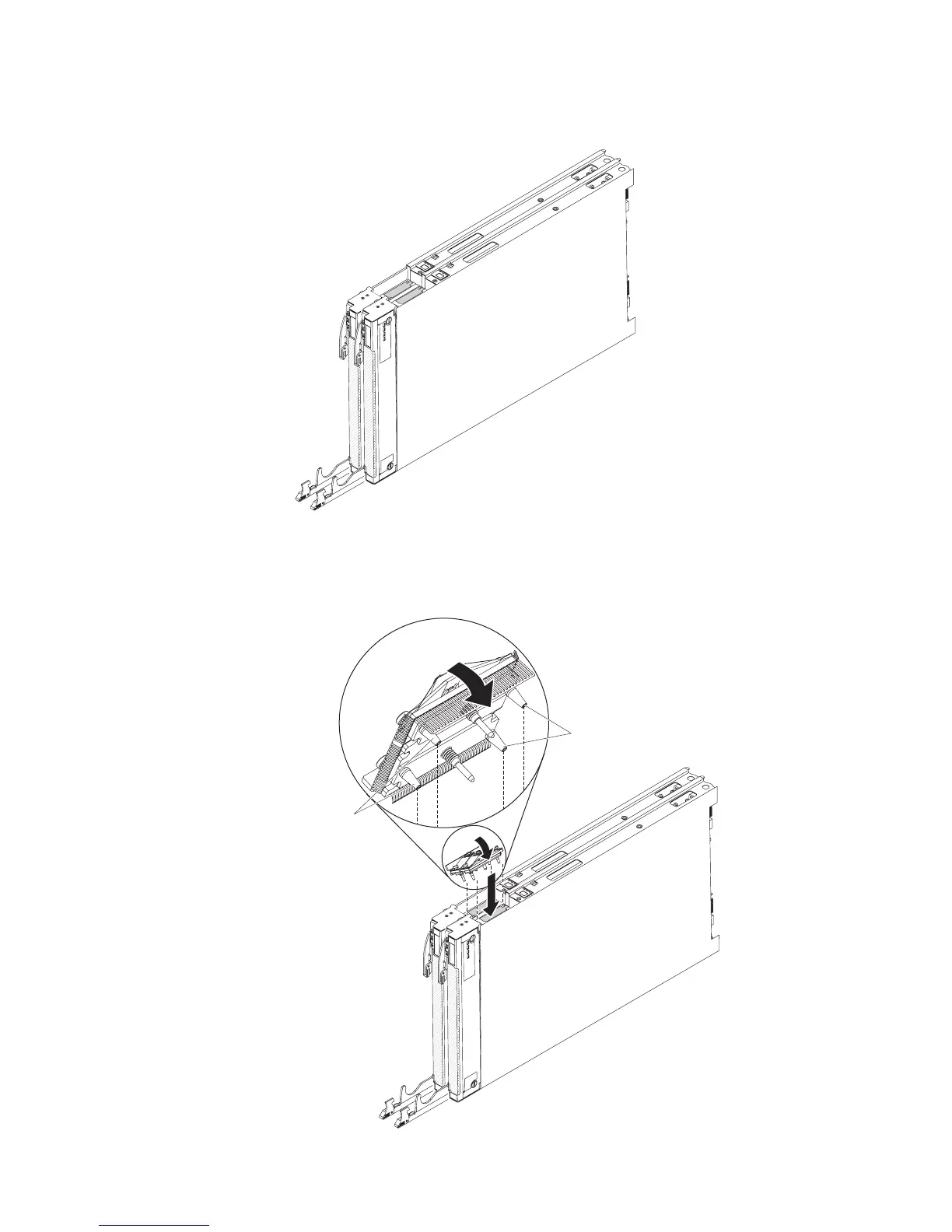

4. Align the pins on the bottom of the IBM 2-node scalability card with the holes
on the scalability connector on the blade server.
5. Press down firmly so that the 2-node scalability card is flush with the
scalability connector on the blade server.
Alignment
pins
Alignment
pins
Chapter 3. Installing optional devices 61
