1) Align the holes in the access panel with the holes in the blade server.
2) Use a screwdriver to install the screws in the holes of the access panel.

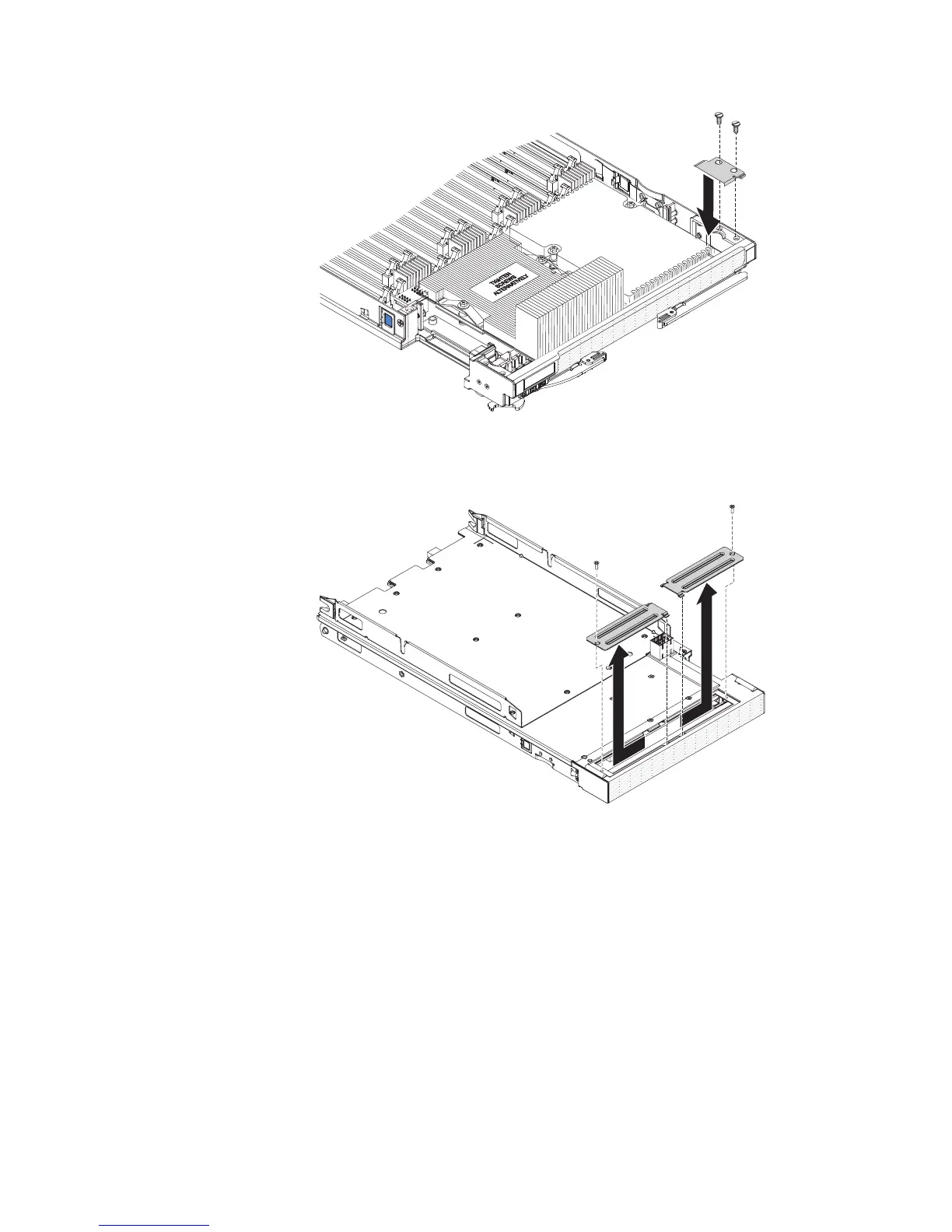

f. Remove the heat sink access plates on the IBM MAX5 expansion blade.
1) Lay the IBM MAX5 expansion blade on a flat, static-protective surface,
cover side down.
2) Use a screwdriver to remove both heat sink access plates.
5. Touch the static-protective package that contains the IBM MAX5 to any
unpainted metal surface on the BladeCenter unit or any unpainted metal surface
on any other grounded rack component; then, remove the optional expansion
unit from the package.
6. Orient the IBM MAX5 as shown in the illustration.
7. Lower the IBM MAX5 so that the slots at the rear slide down onto the cover
pins at the rear of the blade server; then, pivot the IBM MAX5 down onto the
blade server.
8. Press the IBM MAX5 firmly into the closed position until it clicks into place.
9. Install the IBM MAX5 1-node scalability card (see “Installing the IBM MAX5
1-node Scalability card” on page 66 for instructions).
Chapter 3. Installing optional devices 65
