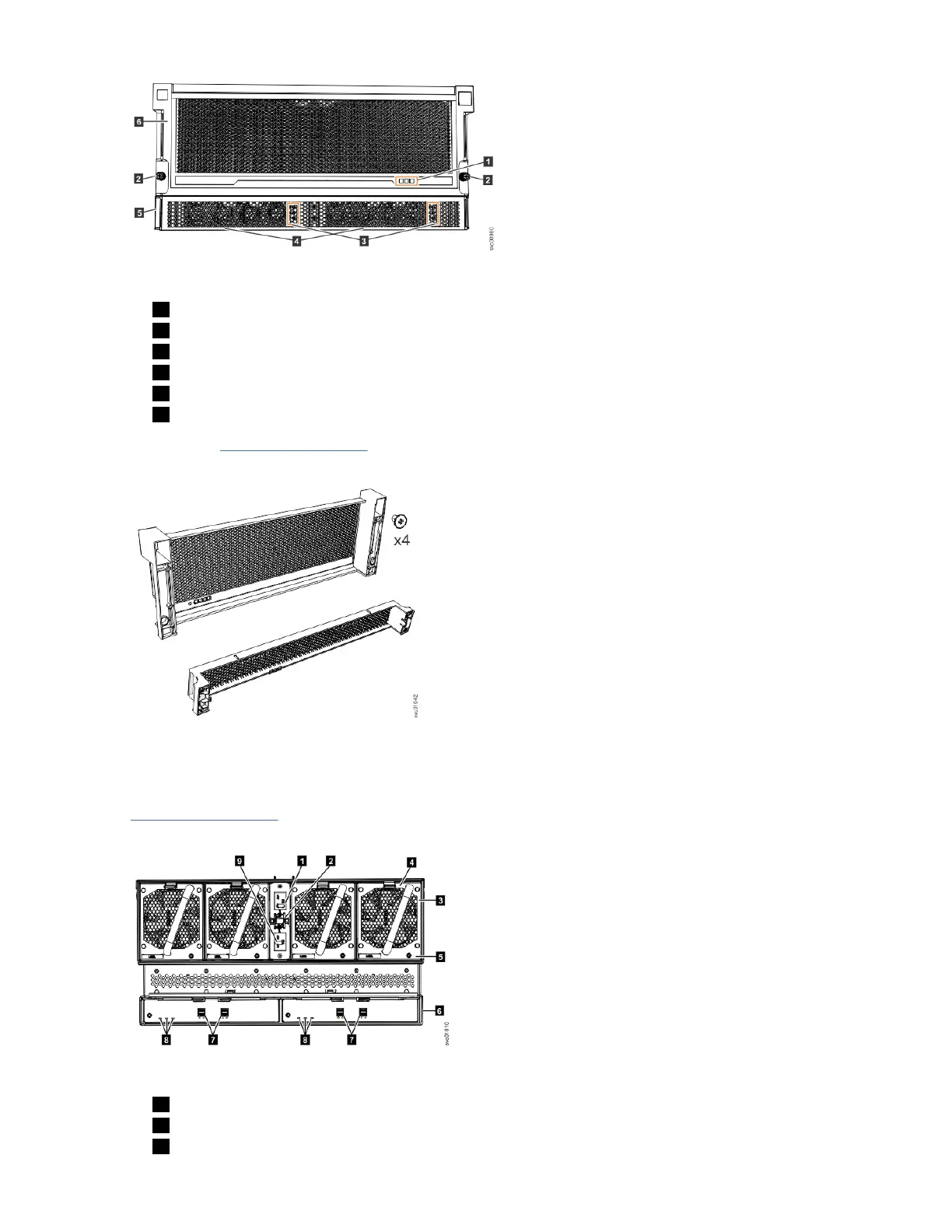

Figure 15. Features on the front of the 5U expansion enclosure
1 Display panel indicators
2 Rack retention thumb screws
3 Power supply unit indicators
4 Power supply units (PSUs)
5 PSU fascia (1U)
6 Front fascia (4U)
However, as Figure 16 on page 38 shows, the 4U and 1U fascias are packaged separately. You must
attach them to the front of the 5U expansion enclosure as part of the initial installation process.
Figure 16. Front fascia of the 5U expansion enclosure
Components on the rear of the enclosure
Figure 17 on page 38 shows the components on the rear of the 5U expansion enclosure. Four fan
modules and two expansion enclosures are accessible from the back of the enclosure.
Figure 17. Features on the rear of the 5U expansion enclosure
1 Power cable connector for PSU 2
2 Power cable retention clamps
3 Fan module
38
IBM FlashSystem 5000 : FlashSystem 5000 Quick Installation Guide

IBM FlashSystem 5000 Series Specifications

General

Model	IBM FlashSystem 5000 Series
Storage Type	Flash
Management Software	IBM Spectrum Virtualize
Form Factor	2U
Drive Types	SAS
RAID Support	RAID 5, RAID 6
Host Interface	16 Gbps Fibre Channel, 25 Gbps iSCSI, 12 Gbps SAS
Data Reduction	Yes (compression, deduplication)
Encryption	Yes
Replication	Yes, Metro Mirror, Global Mirror
Operating System Support	Windows, Linux, AIX, IBM i
Cache	64GB
