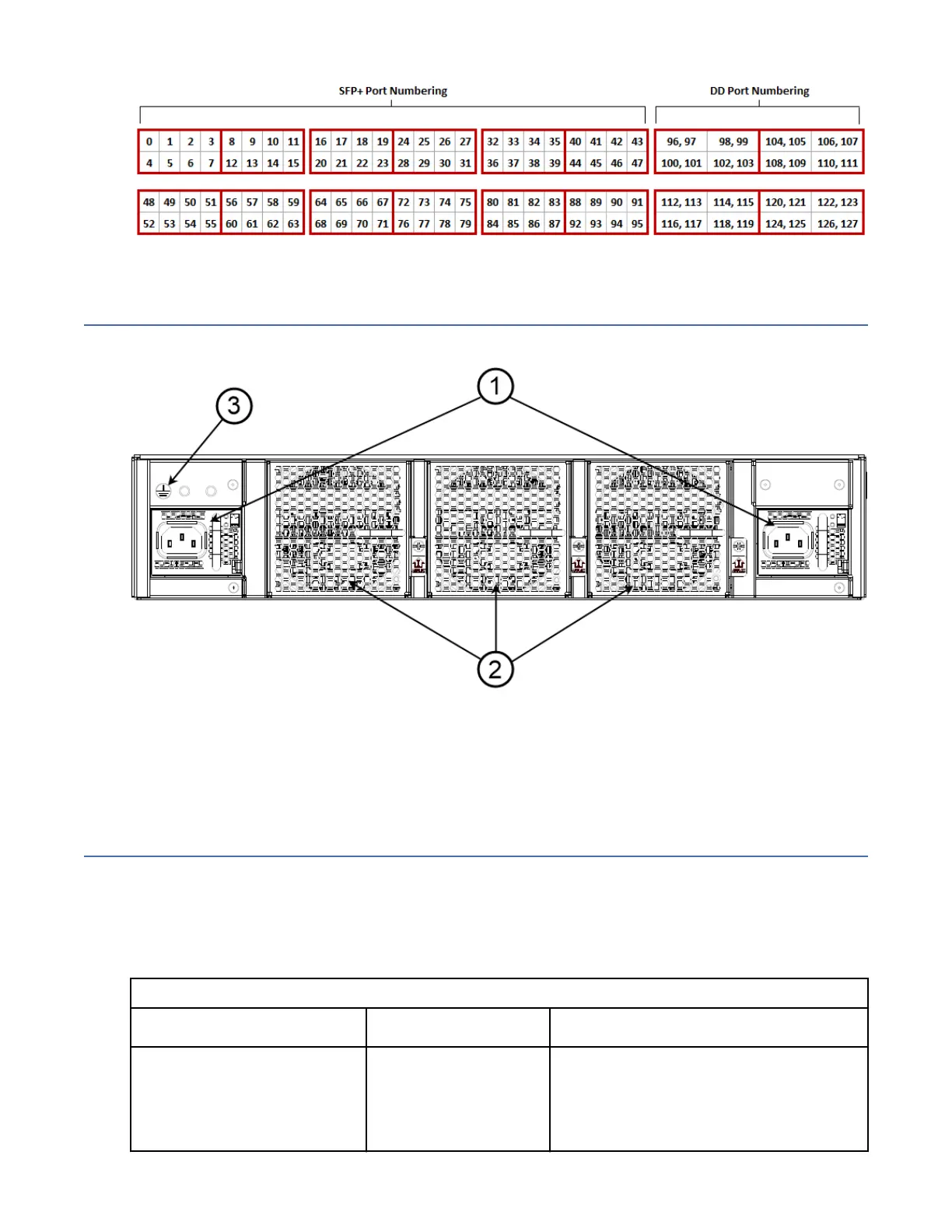

Figure 2. Port Numbering for the SAN128B-7 Switch
Nonport-side view
The following illustration shows the nonport-side view of the SAN128B-7 FC switch.
Figure 3. Nonport-side view with AC power supply and fan assembly units
1. Power Supply Units (PSU 1 and PSU 2 from right to left)
2. Fan Assemblies (Fan 1, 2, and 3 from right to left)
3. Ground Cable Connector
Device management options
You can use the management functions built into the device to monitor the fabric topology, port status,
physical status, and other information to help you analyze switch performance and to accelerate system
debugging. The device automatically performs a power-on self-test (POST) each time it is turned on. A
RASlog message is generated for any detected startup errors.
You can manage the device using any of the management options listed in the following table.
Table 2. Management options for the device
Management tool Out-of-band support Reference documents
Command line interface (CLI)
Up to two admin sessions
and four user sessions
simultaneously.
Ethernet or serial
connection
Fabric OS Administration Guide
Fabric OS Command Reference Manual
Chapter 1. Device Overview 3
