Parts list
The following parts are provided wit the 1U and 2U Universal Kit for Four Post Racks Installation.

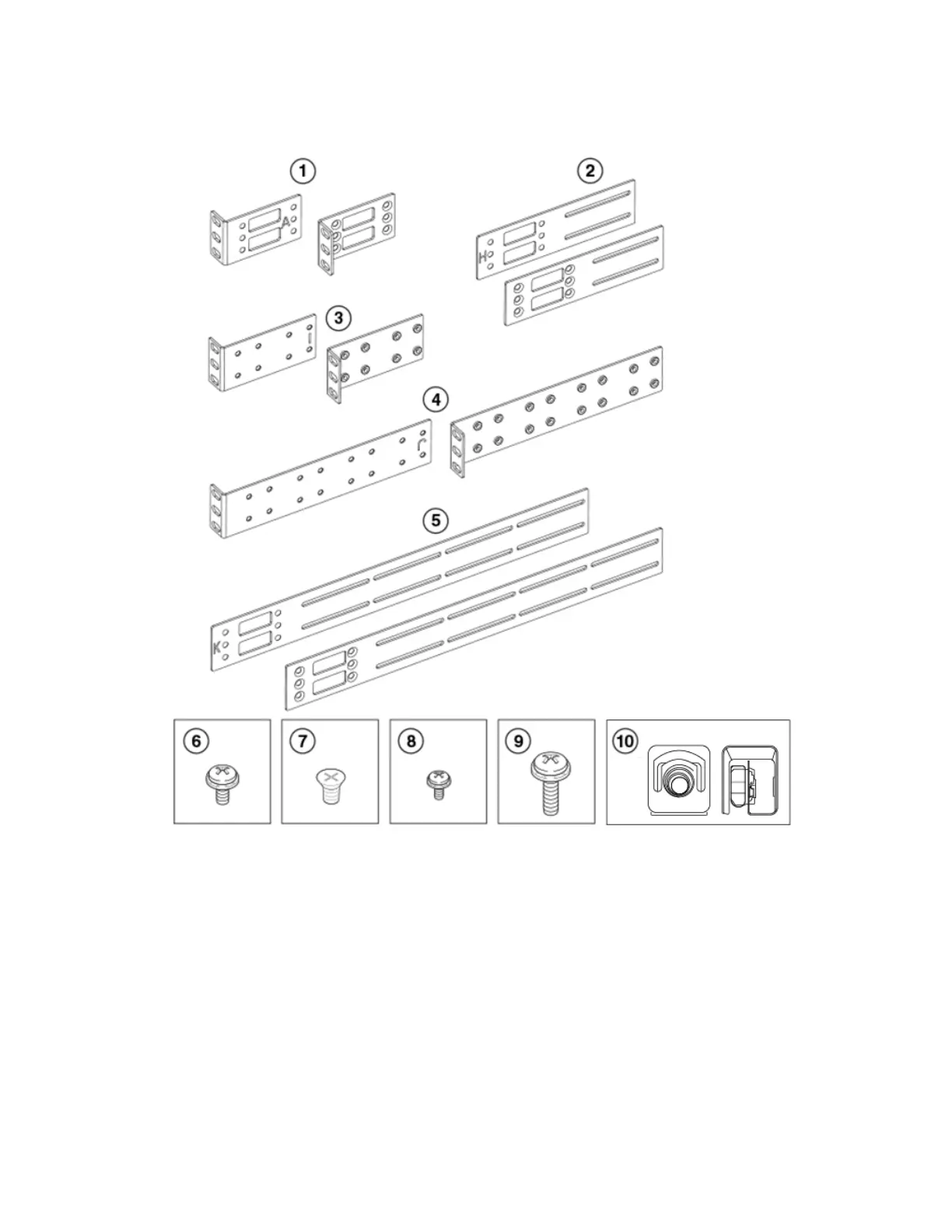

Figure 5. Rack kit parts
1. Front brackets (2)
2. Extension brackets, medium (2)
3. Rear brackets, short (2)
4. Rear brackets, long (2)
5. Extension brackets, long (2)
6. Screw, 8-32 x 5/16-in., panhead Phillips (8)
7. Screw, 8-32 x 5/16-in., flathead Phillips (16)
8. Screw, 6-32 x 1/4-in., panhead Phillips (8)
9. Screw, 10-32 x 5/8-in., panhead Phillips (8)
10. Retainer nut, 10-32 (8)
12
IBM Storage Networking SAN128B-7: SAN128B-7 Installation, Service, and User Guide
