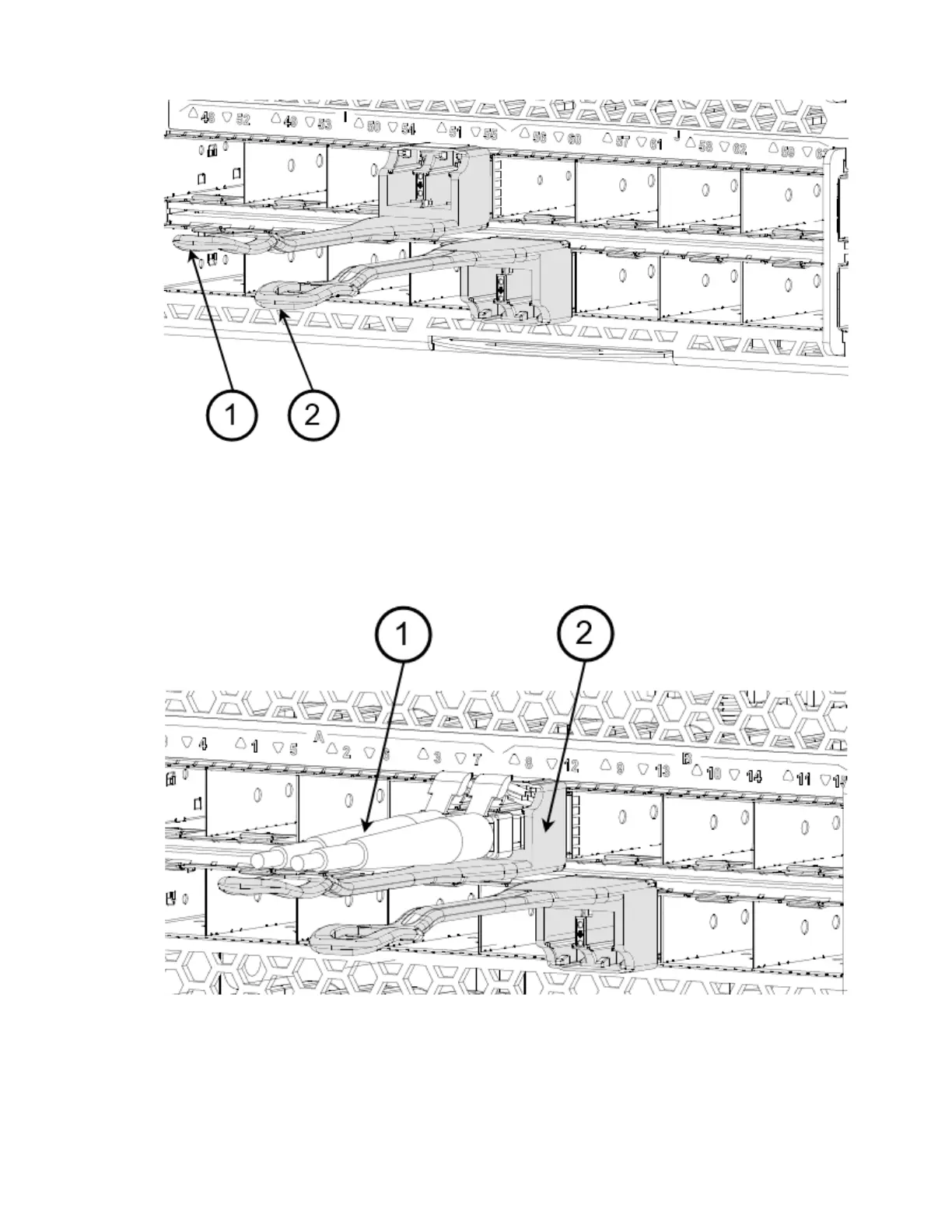

Figure 27. Installing a SFP+ transceiver into an upper port
1. Pull Tab of Transceiver in Upper Row
2. Pull Tab of Transceiver in Lower Row
2. Position a cable so that the key (the ridge on one side of the cable connector) is aligned with the slot in
the transceiver. Insert the cable into the transceiver until the latching mechanism clicks.
Figure 28. Installing SFP+ Cables
1. Cable and Connector
2. Transceiver
Chapter 5. Installing Transceivers and Cables
43
