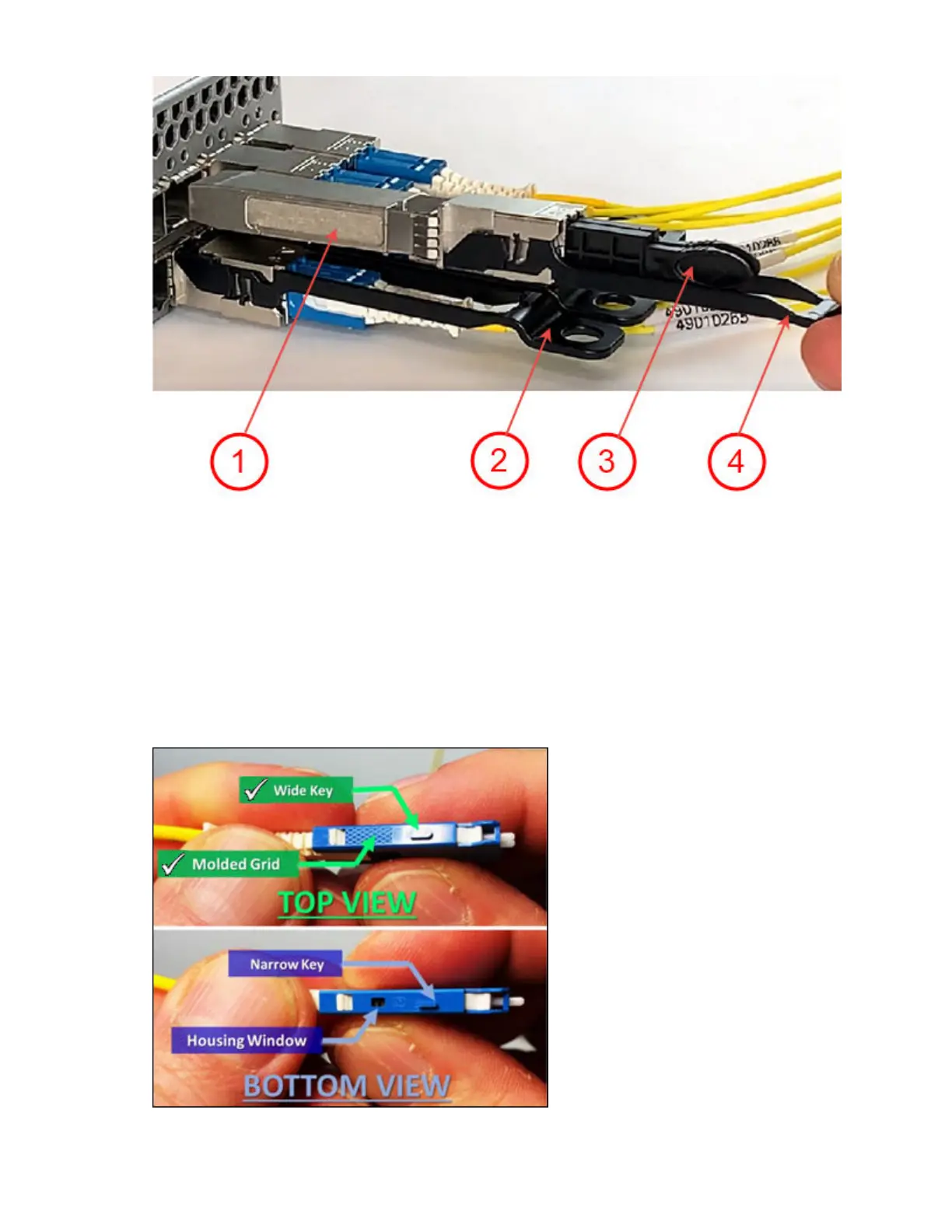

Figure 29. Installing SFP-DD transceivers
1. SFP-DD transceiver
2. Pull Tab of transceiver in lower row
3. Dust caps
4. Pull Tab of transceiver in upper row
2. Remove the rst dust cap from the transceiver. Leave the second dust cap in place.
3. Position a cable so that the molded grid pattern and wide key tab on one side of the cable connector
are facing up (away from the transceiver pull tab).
Note: If you are inserting the cable into a transceiver on the lower row of ports, the molded grid
pattern on the cable should be facing down (away from the transceiver pull tab).
Figure 30. Orientation of the SFP-DD connector
Chapter 5. Installing Transceivers and Cables
45
