1 Inner connector on upper CMA
2 Connector base on inner rail member
3 Outer connector on upper CMA
4 Connector base on outer rail member
5 Support rail connector on upper CMA
6 Connector base on outer rail member
2. Install the inner connector of the upper CMA assembly (1) to the inner
member of the left support rail (2), as shown in Figure 52 from the outer and
inner support rails.
3. Install the inner connector of the upper CMA assembly (3) to the inner
member of the left support rail (4), as shown in Figure 53 on page 69.
svc01035
1
2
3
4
5
6

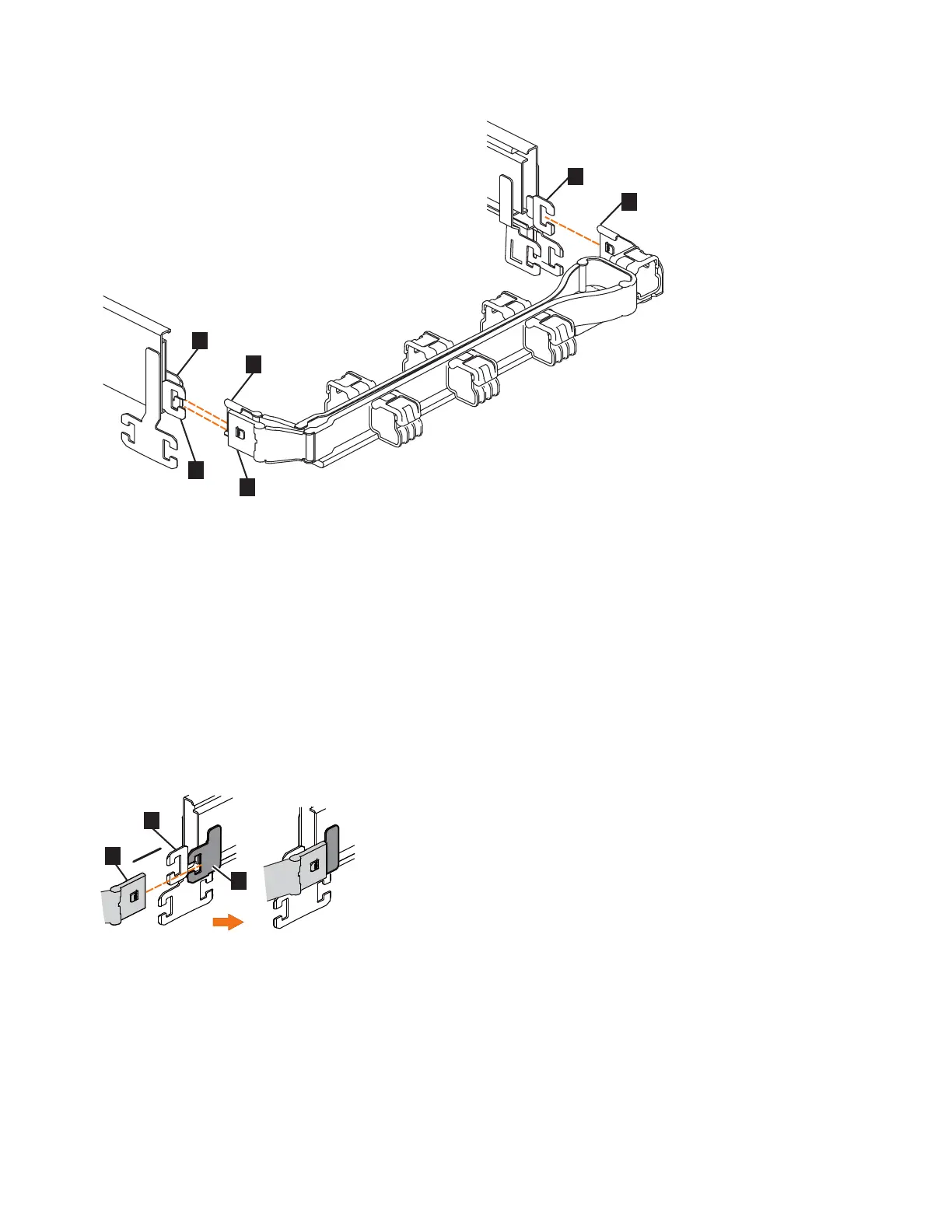

Figure 51. Connectors for the cable management arm
1
4
2
svc01036
Figure 52. Install the inner connector of the upper CMA to the inner member of the support rail
68 Storwize V5000 Gen2: Quick Installation Guide
