8. Using a #2 Phillips screwdriver, secure the library to the rack (see Figure 1-10 for a 2U library; see
Figure 1-11 on page 1-9 for a 4U library) by placing a screw in the center hole of each mounting
bracket and tightening them (
1
).
a77ug109

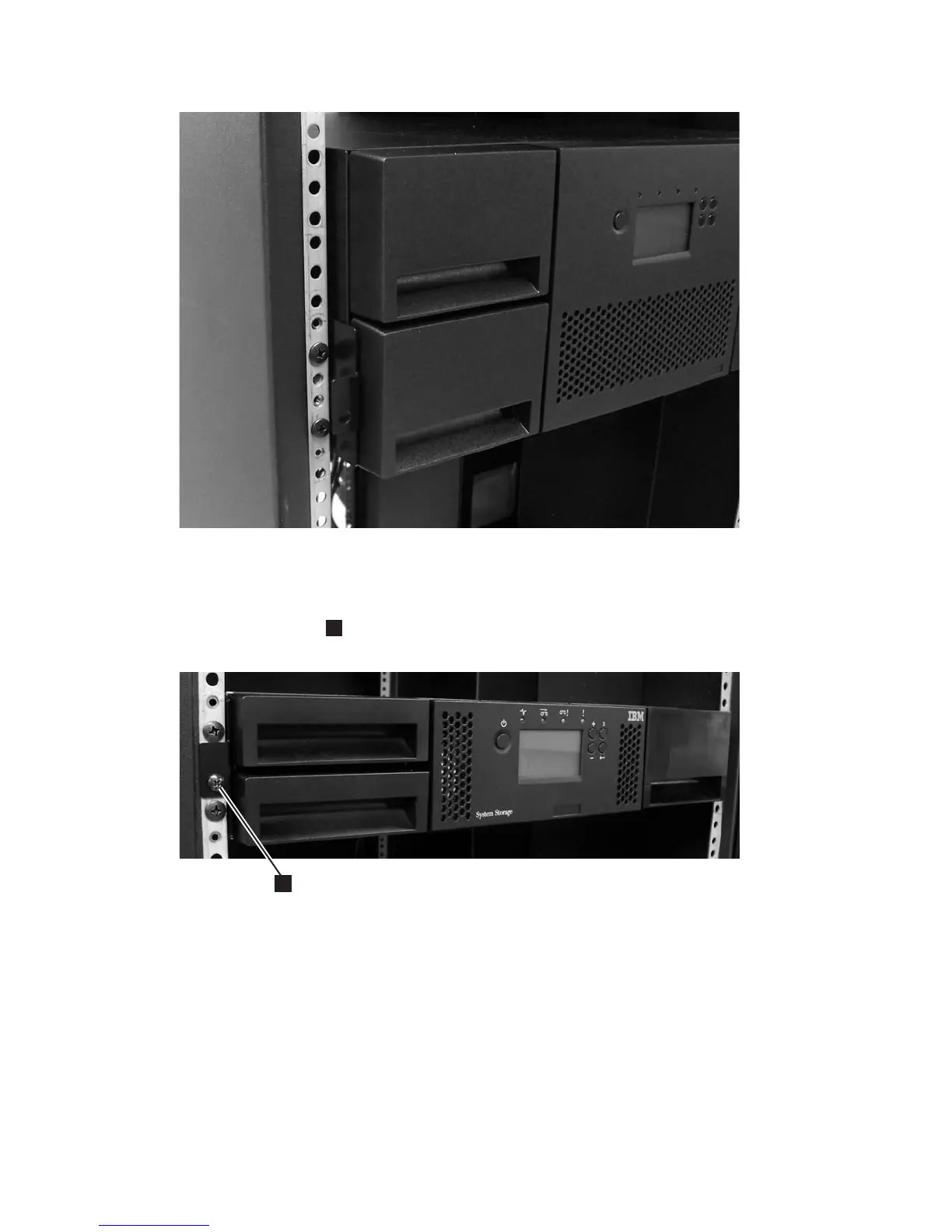

Figure 1-9. Sliding the 4U library into the rack
a77ug112
1
Figure 1-10. Securing the 2U library to the rack
1-8 TS3100 and TS3200 (3573) Installation Quick Reference
