2. Store the lock (
1
) and label (
2
) on the rear panel of the library as shown in Figure 1-3.
Rackmounting the Library (for Rack Installation ONLY)
The 2U library and the 4U library are easily installed into a standard 19-inch rack system. The 2U library
requires 2U (3.5 in.) of space. The 4U library requires 4U (7 in.) of space.
If you are not rackmounting your library, skip this procedure and go to “Attaching the Library to a Server”
on page 1-9.
1
2
a77ug018

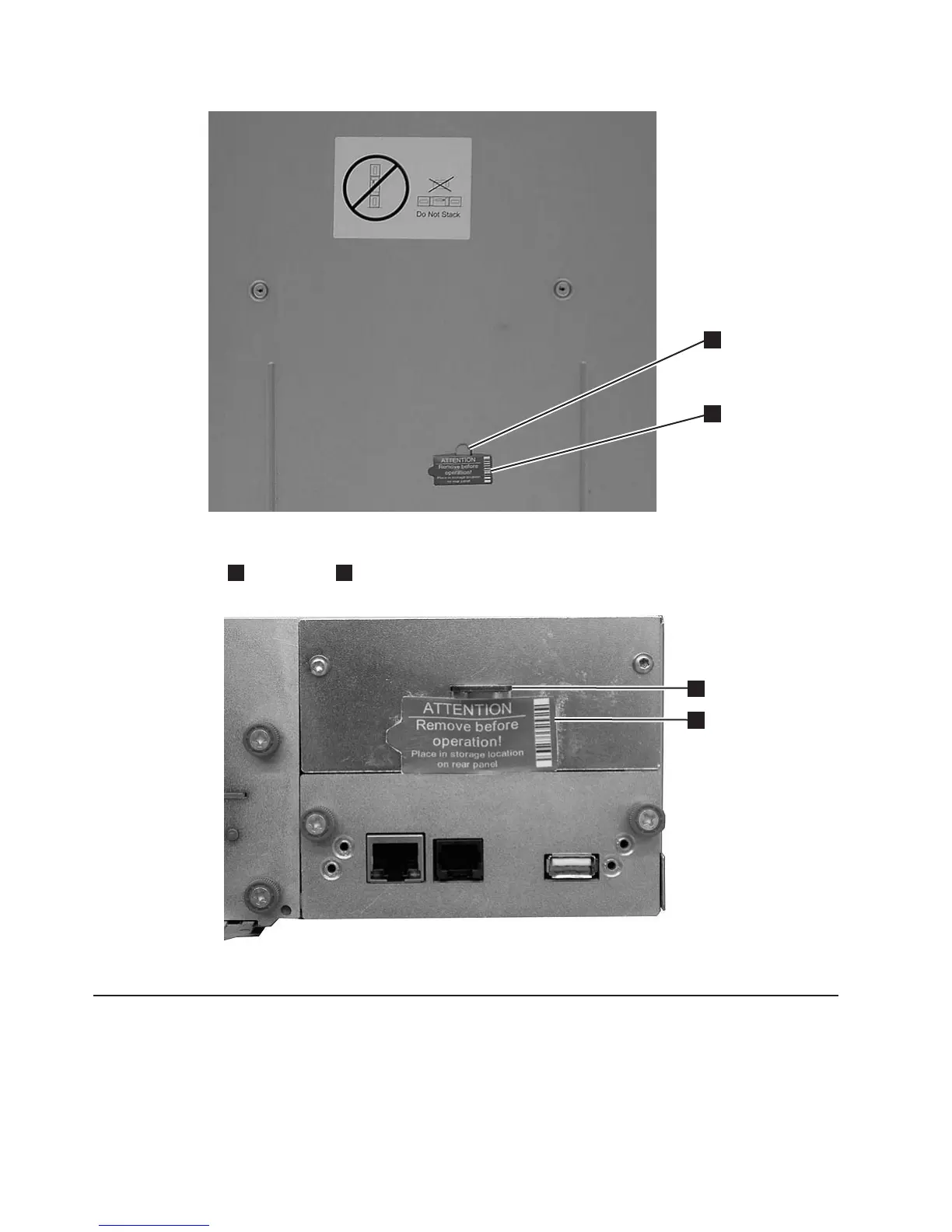

Figure 1-2. Shipping lock and label
1
2
a77ug019
Figure 1-3. Library shipping lock and label storage location
1-4 TS3100 and TS3200 (3573) Installation Quick Reference
