Important: A 2U library weighs 15.59 kg (34.37 lbs.) with one drive and without media. A 4U library
weighs 21.32 kg (47 lbs.) with one drive and without media.
To reduce the risk of personal injury or damage to the library:
1. observe local health and safety requirements and guidelines for manual material handling,
2. obtain adequate assistance to lift and stabilize the library during installation or removal,
and
3. always remove all cartridges to reduce the overall weight of the library.
To
install your library in a rack, perform the following steps.
1. Verify that your rack kit includes the following contents (see Figure 1-4):
v Packaged in plastic material:
– 2 rails
– 2 mounting brackets
v Packaged in the small bag with no label:
– 1 T8 Torx wrench
– 2 anchors
– 2 large screws to secure the mounting brackets to the rack
– 6 small countersunk screws for securing the anchors and the top of the mounting brackets
v
Packaged in the small bag with ″Round Hole″ on the label: 9 screws to be used on racks with round
holes.
v Packaged in the small bag with ″Square Hole″ on the label: 9 screws to be used on racks with
square holes.

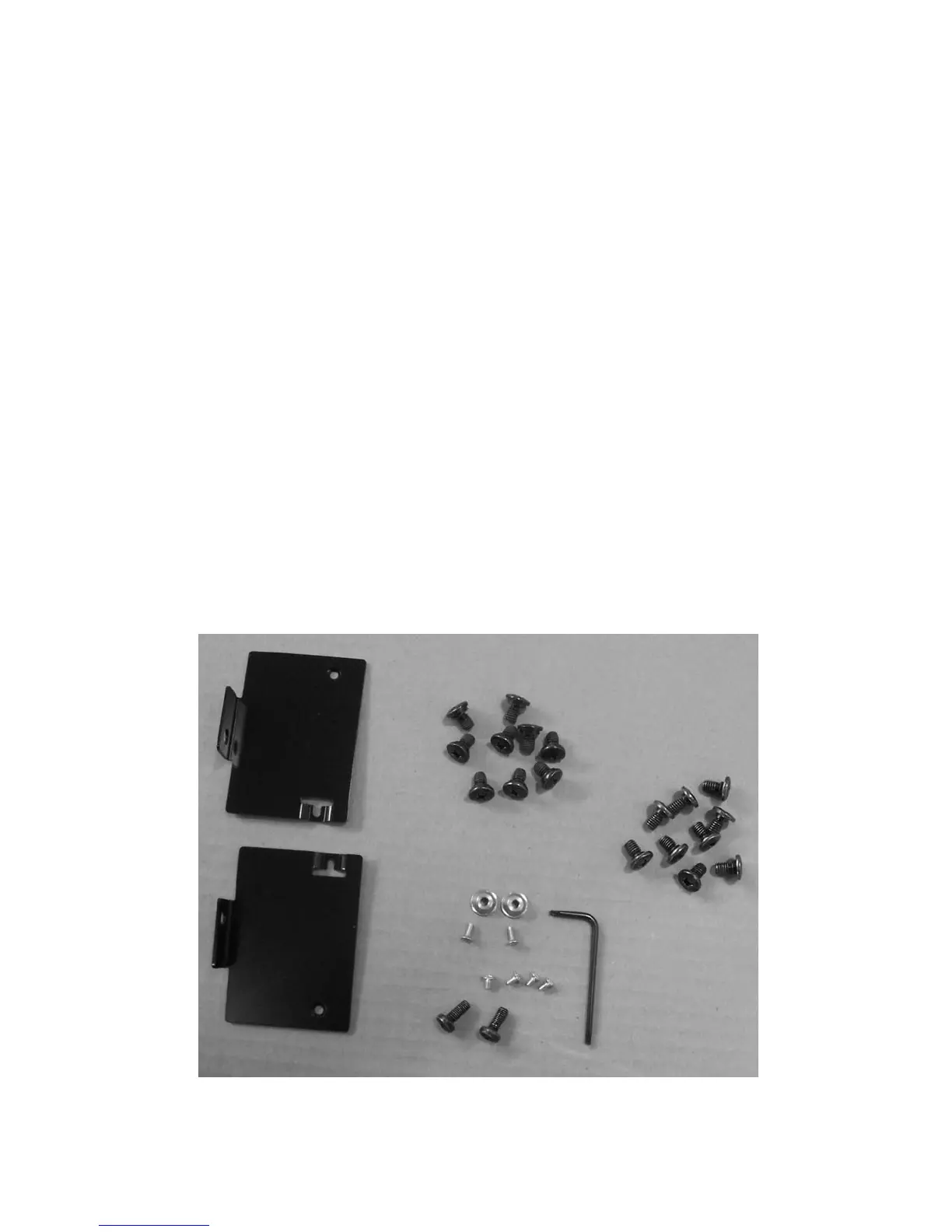

a77ug107
Figure 1-4. Rack Kit mounting hardware
Installation 1-5
