2. Determine the location in your rack for your library to be installed and, using a pencil, mark the location
on each vertical rail in your rack.
Note: A 2U library requires 2U (3.5 in.) of rack space. A 4U library requires 4U (7 in.) of rack space.
3. Using the screws for your rack type (round holes or square holes) and a #2 Phillips screwdriver,
secure one rail to each side of the rack in your chosen rack location. Secure both the front and back of
each rail to the rack. The rails extend to fit a variety of rack depths. Each rail requires 2U of rack
space (1 in Figure 1-5).
4. Using the Torx wrench included in your shipment, remove the screws (
1
) as shown in Figure 1-6.
Screw locations on the 4U library are similar.
5. Install the library rack anchors (2) as shown in Figure 1-7 on page 1-7 on each side of your library
using the longest counter-sunk screws included in the rack kit.
1
a77ug009

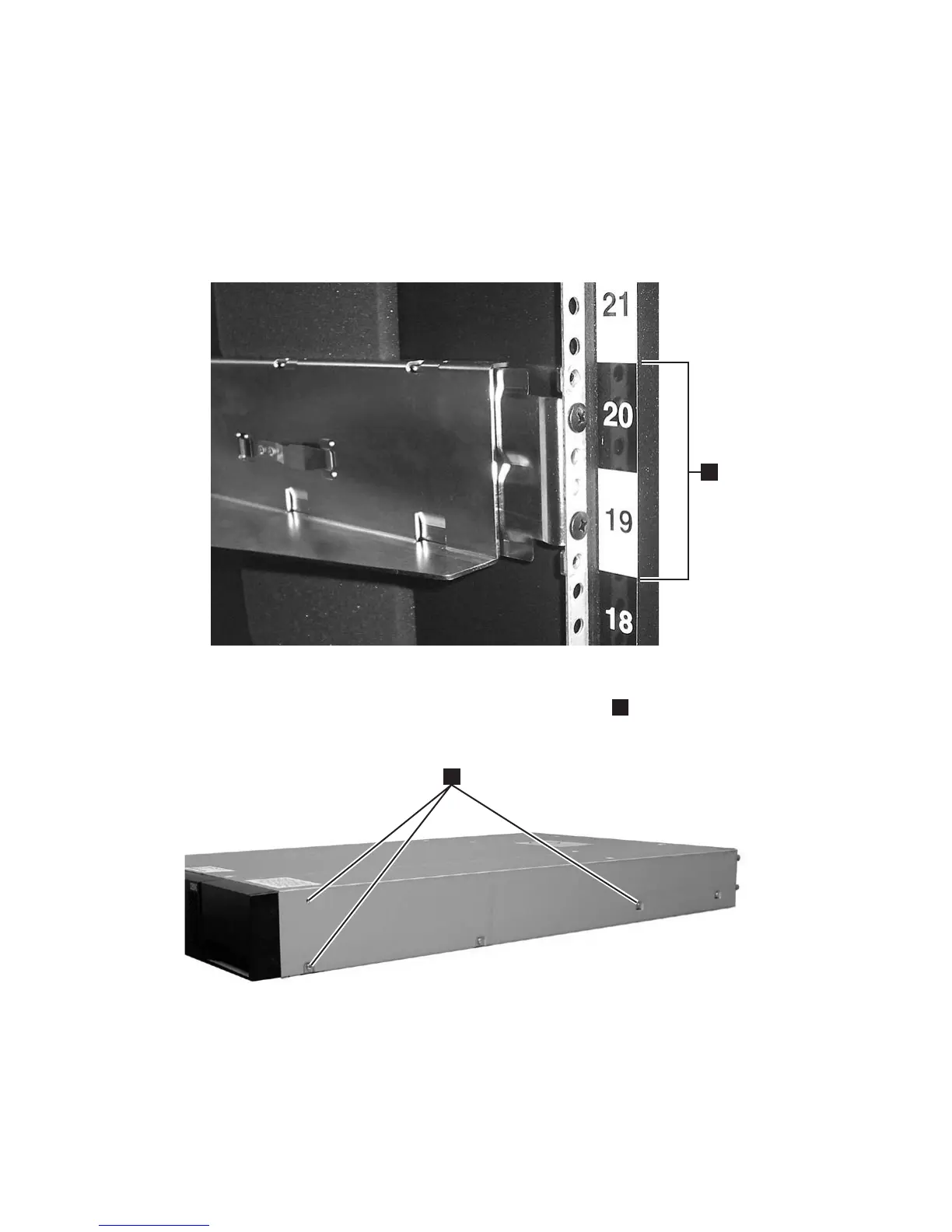

Figure 1-5. Rear view of a rail installed in a rack
a77ug011
1
Figure 1-6. 2U library side screws to remove
1-6 TS3100 and TS3200 (3573) Installation Quick Reference
