IBM System Storage TS3100 Installation Quick Reference Guide

There are finger holes on the back side of the I/O Station (see 1 in Figure 1-33) that allow the user to
push the cartridges out of the I/O station.
Populating the Library with Data Cartridges
For information on working with the cartridge magazines, see “Cartridge Magazines” on page 1-23.
1. Unlock the cartridge magazines.
a77ug103

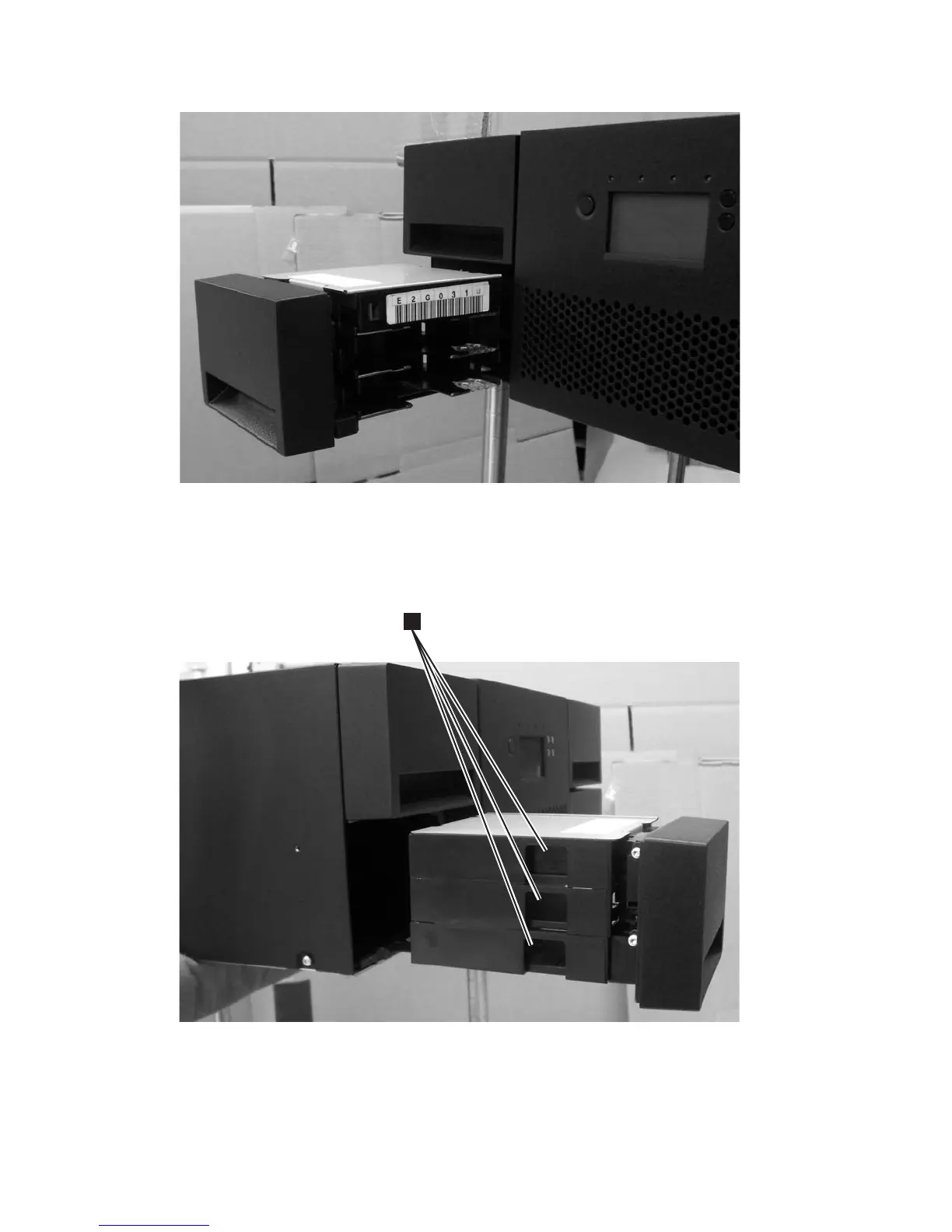

Figure 1-32. 4U library I/O Station in the lower left magazine
a77ug104
1
Figure 1-33. Finger Holes on back side of 4U Library I/O Station
1-28 TS3100 and TS3200 (3573) Installation Quick Reference

IBM System Storage TS3100 Specifications

General

Number of Tape Drives	1
Number of Tape Cartridges	24
Product Type	Tape Library
Operating Humidity	20% to 80% non-condensing
Interface	SAS
Supported Tape Drive Types	LTO Ultrium 5, LTO Ultrium 6
Tape Drive Technology	LTO Ultrium
