IBM System x3500 M2 Type 7839 - Installing a DVD Drive

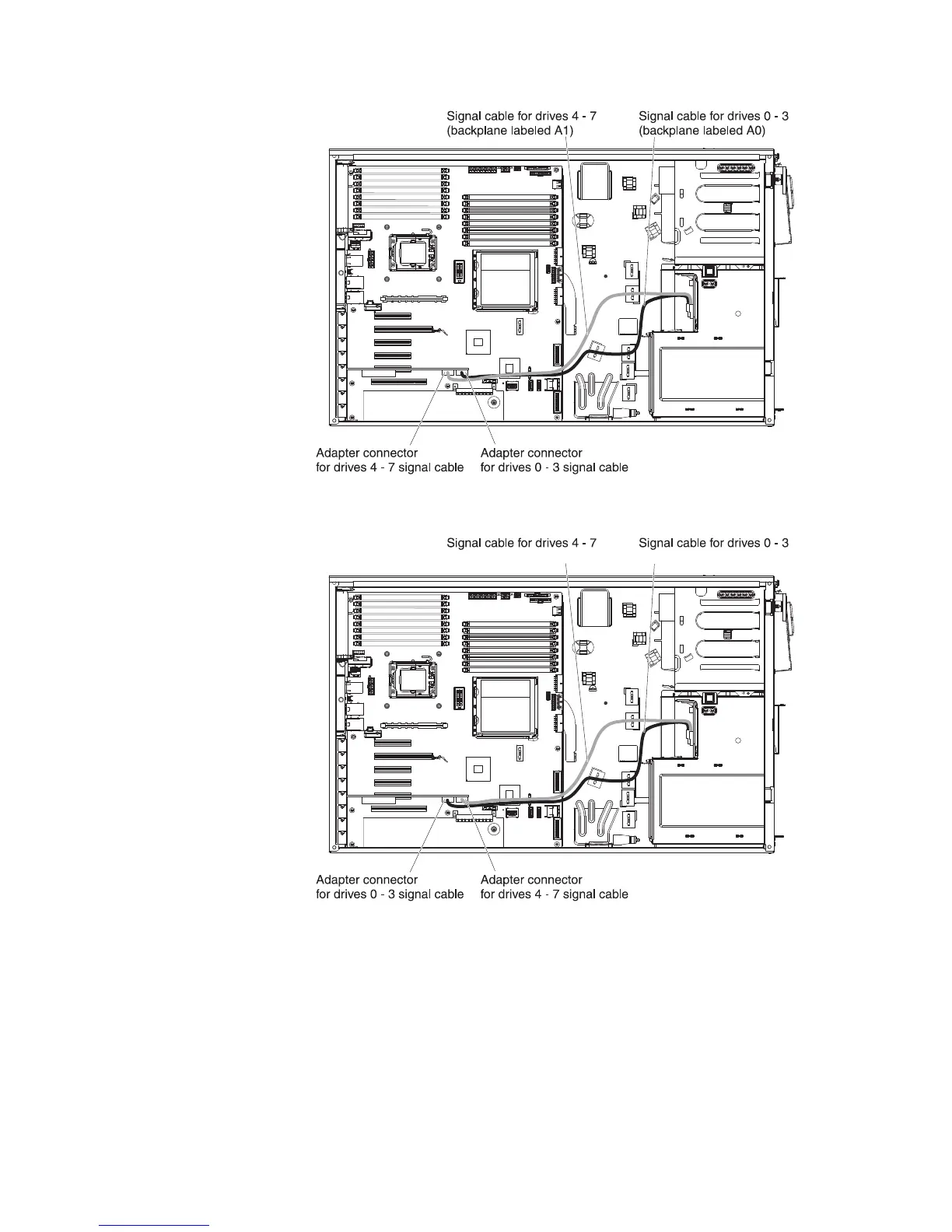

v The following illustration shows the internal signal cable routing for installing a
ServeRAID-MR10i SAS/SATA adapter.
3. For server models with sixteen 2.5-inch hot-swap hard disk drives.
v The following illustration shows the internal power cable routing.
Chapter 2. Installing optional devices 43
