4. Install the ServeRAID adapter on the system board (see “Installing a ServeRAID
SAS/SATA controller” on page 71) or install the ServeRAID adapter on the riser
card and install the riser-card assembly in the server (see “Replacing a PCI
riser-card assembly” on page 65).
5. Connect one end of the battery cable to the RAID adapter battery connector.

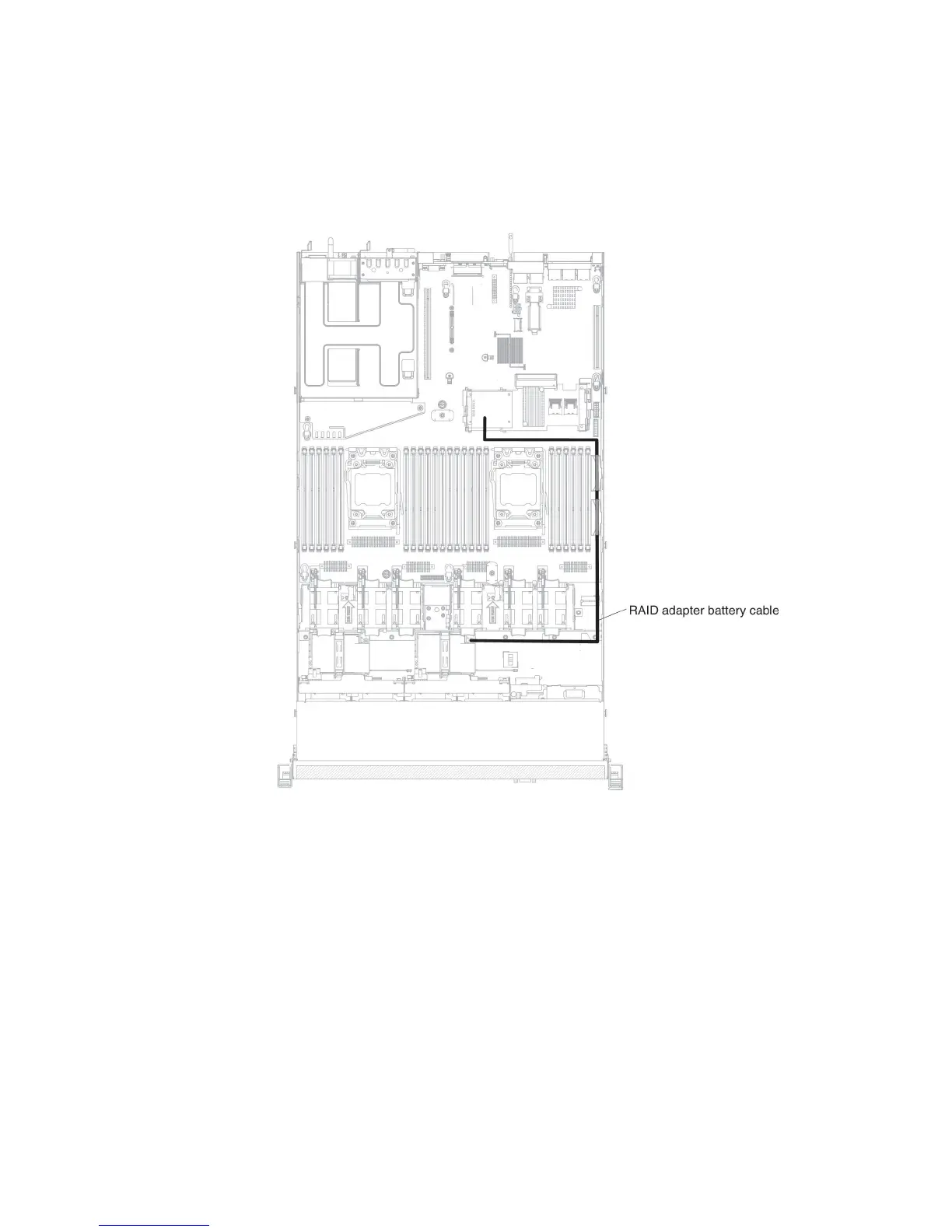

6. Route the remote battery cable along the chassis.
Attention: Make sure that the cable is not pinched and does not cover any
connectors or obstruct any components on the system board.
7. Install the battery:
a. Align the battery cable connector with the slot on the battery holder. Place
the battery into the battery holder and make sure that the battery holder
engages the battery securely.
