If you have other devices to install or remove, do so now. Otherwise, go to
“Completing the installation” on page 101.
Removing a ServeRAID SAS/SATA controller
The ServeRAID SAS/SATA controller can be installed in the dedicated connector on
the system board or PCI riser-card slots (see “System-board internal connectors” on
page 33 for the location of the connectors).
You can replace the ServeRAID controller with another supported ServeRAID
controller. For a list of supported ServeRAID controllers, see http://www.ibm.com/
servers/eserver/serverproven/compat/us/.
Note: For brevity, in this documentation the ServeRAID SAS/SATA controller is
often referred to as the SAS/SATA adapter or the ServeRAID adapter.
To remove the SAS/SATA adapter from the system board, complete the following
steps:
1. Read the safety information that begins on page vii and the “Installation
guidelines” on page 38.
2. Turn off the server and peripheral devices and disconnect the power cords.
3. Remove the cover (see “Removing the cover” on page 50).
4. Locate the SAS/SATA adapter between PCI slot 1 and microprocessor 1.
5. Disconnect the signal cables and power cables from the connectors on the
SAS/SATA adapter and note their locations.

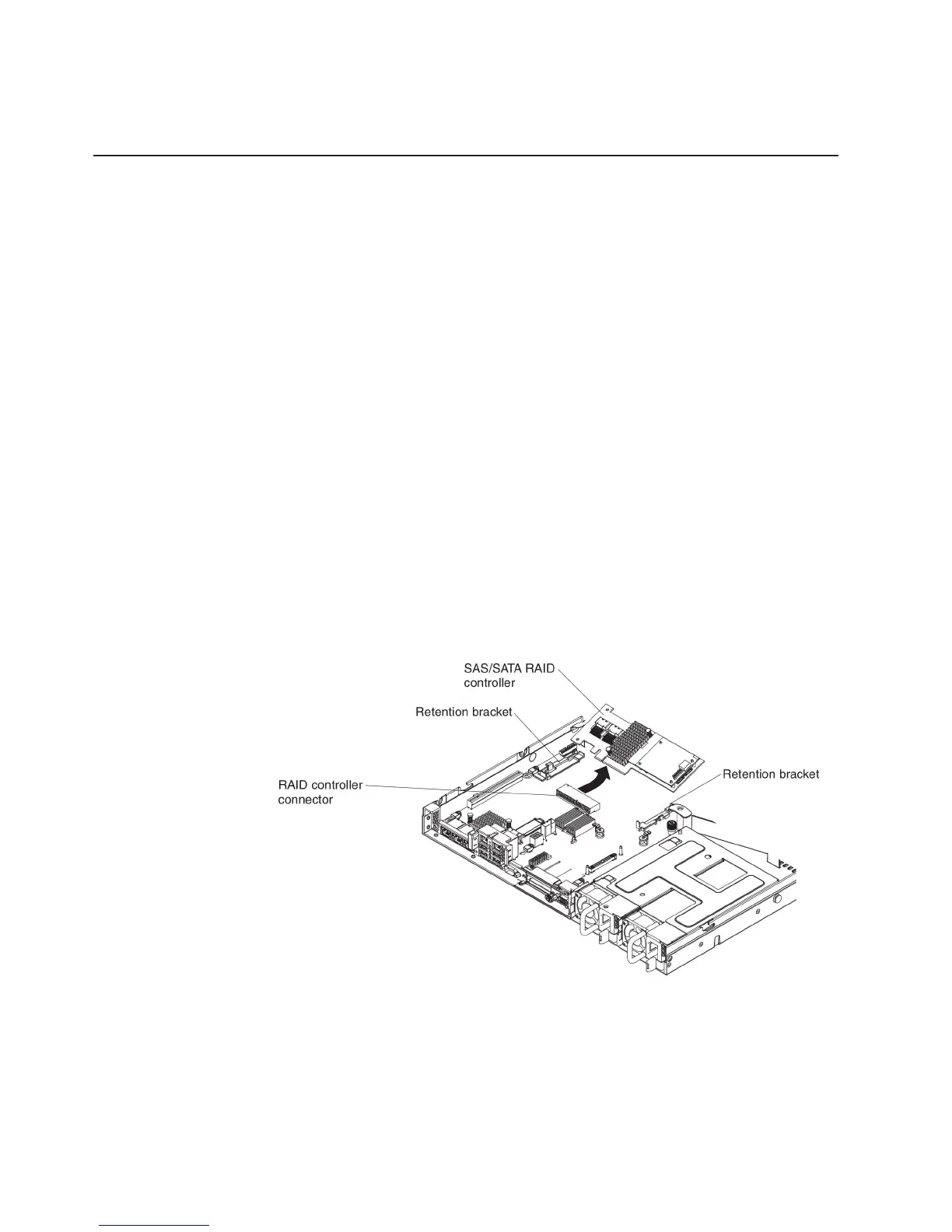

6. Grasp the end of the SAS/SATA adapter near microprocessor 1 while you slide
the brackets. Slide the retention bracket (near the chassis) toward the chassis;
then, slide the other retention bracket toward the power supplies.
Note: If you have installed the optional ServeRAID adapter memory card,
remove it and keep it in future use.
7. Pull the SAS/SATA adapter horizontally out of the connector on the system
board.
70 IBM System x3550 M4 Type 7914: Installation and User’s Guide
