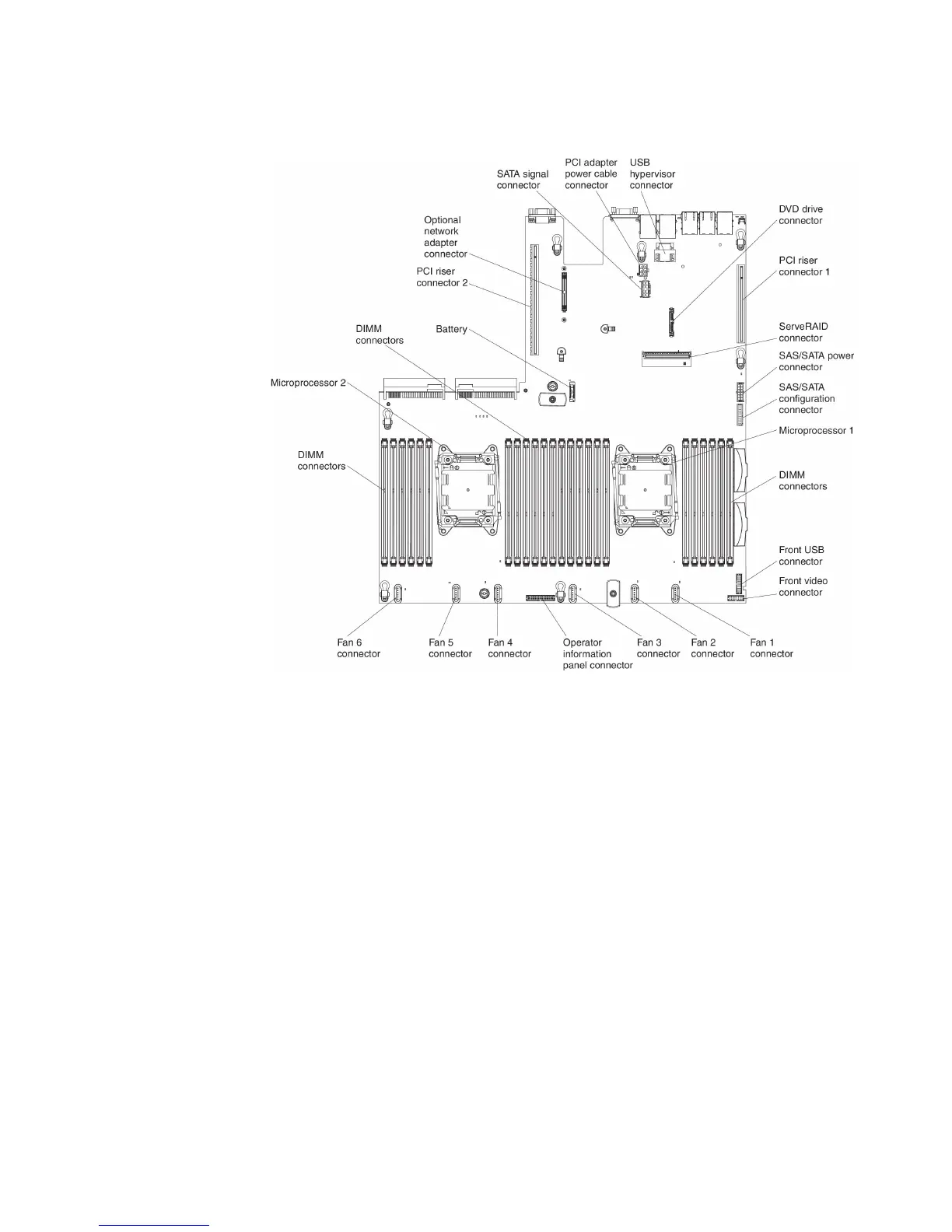

System-board internal connectors
The following illustration shows the internal connectors on the system board.
Chapter 2. Installing optional devices 33
