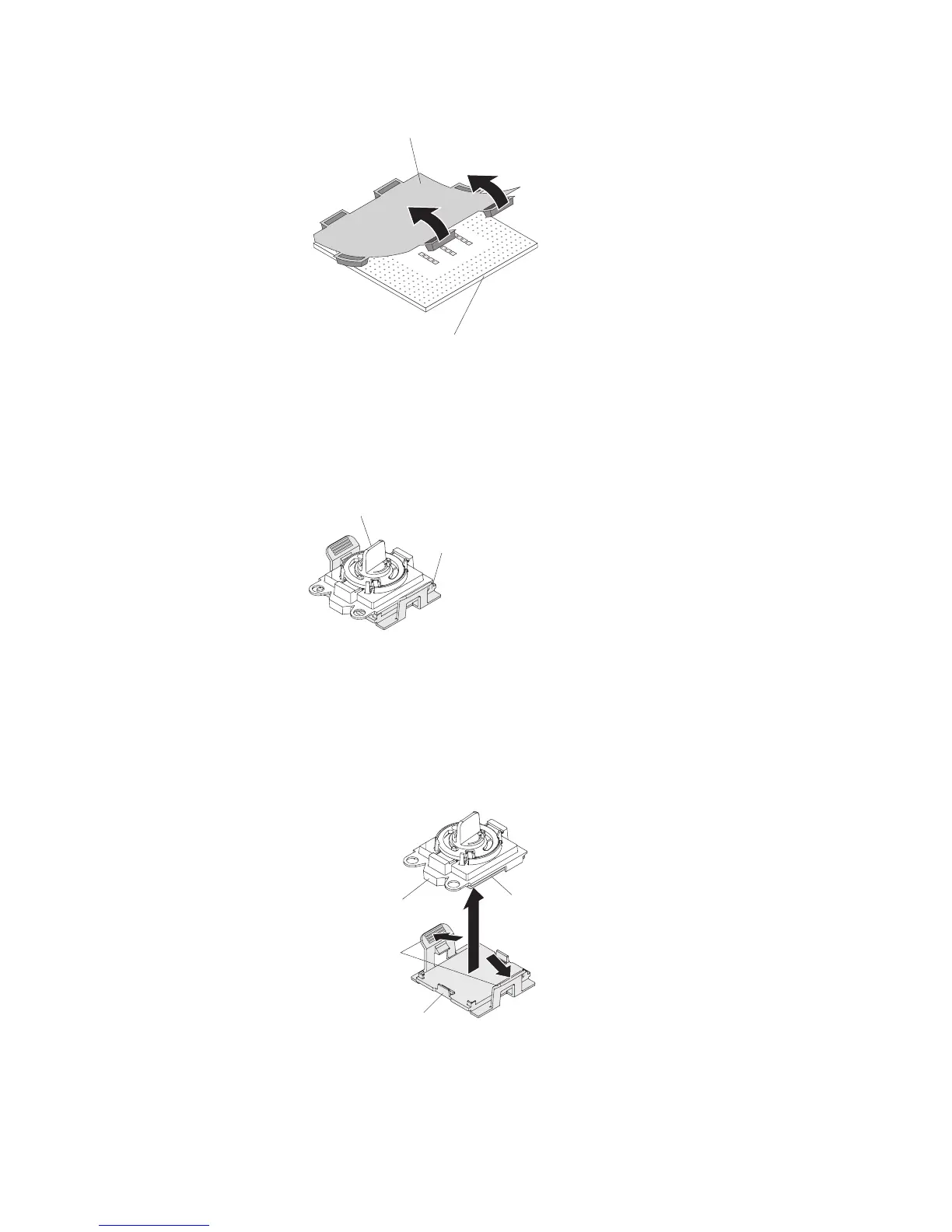

Microprocessor
Protective
cover
f. Locate the microprocessor installation tool that comes with the new
microprocessor.
Note: The microprocessor installation tool assembly comes with the
microprocessor and microprocessor cover attached to the tool. The
microprocessor comes protected between the tool and the microprocessor
cover.
Microprocessor
cover
Installation tool
g. Remove the microprocessor installation tool assembly from the package.
Note: Do not rotate the handle on the tool until you are ready to install the
microprocessor into the microprocessor socket.
h. Remove the cover from the bottom of the microprocessor installation tool.
Press both microprocessor cover release tabs outward (in opposite
directions as shown in the illustration) and remove the microprocessor
installation tool with the microprocessor attached.
Microprocessor
cover release
tabs
Microprocessor
cover
Installation tool
Microprocessor
i. Carefully align the microprocessor installation tool over the microprocessor
socket.
100 System x3650 M3 Types 4255, 7945, and 7949: Installation and User’s Guide
