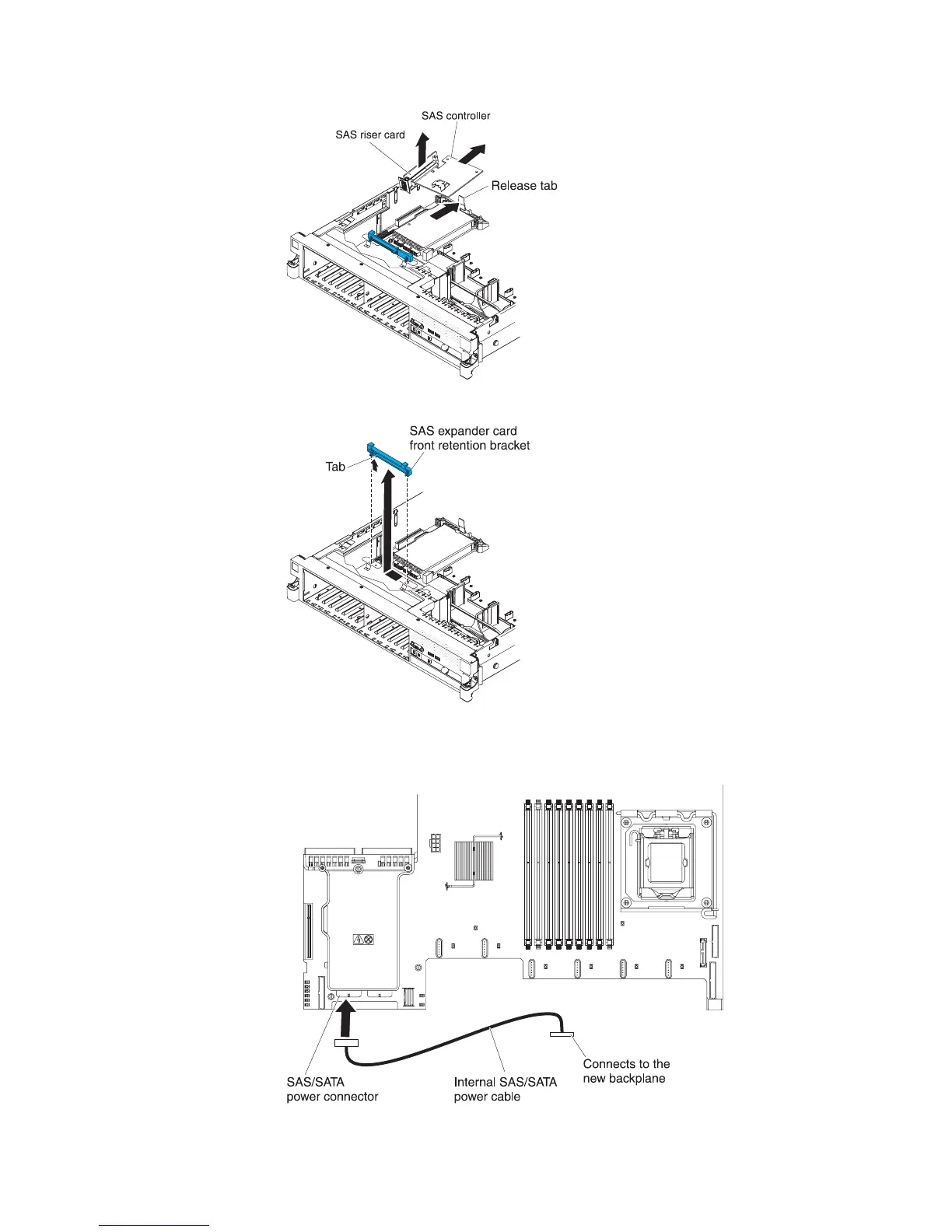

9. Remove the SAS controller front retention bracket from the server.
10. Connect one end of the internal power cable that comes with the 4 Pac HDD
upgrade option kit into the hot-swap SAS/SATA power connector on the system
board.
11. Remove hard disk drive backplane from the server.
64 System x3650 M3 Types 4255, 7945, and 7949: Installation and User’s Guide
