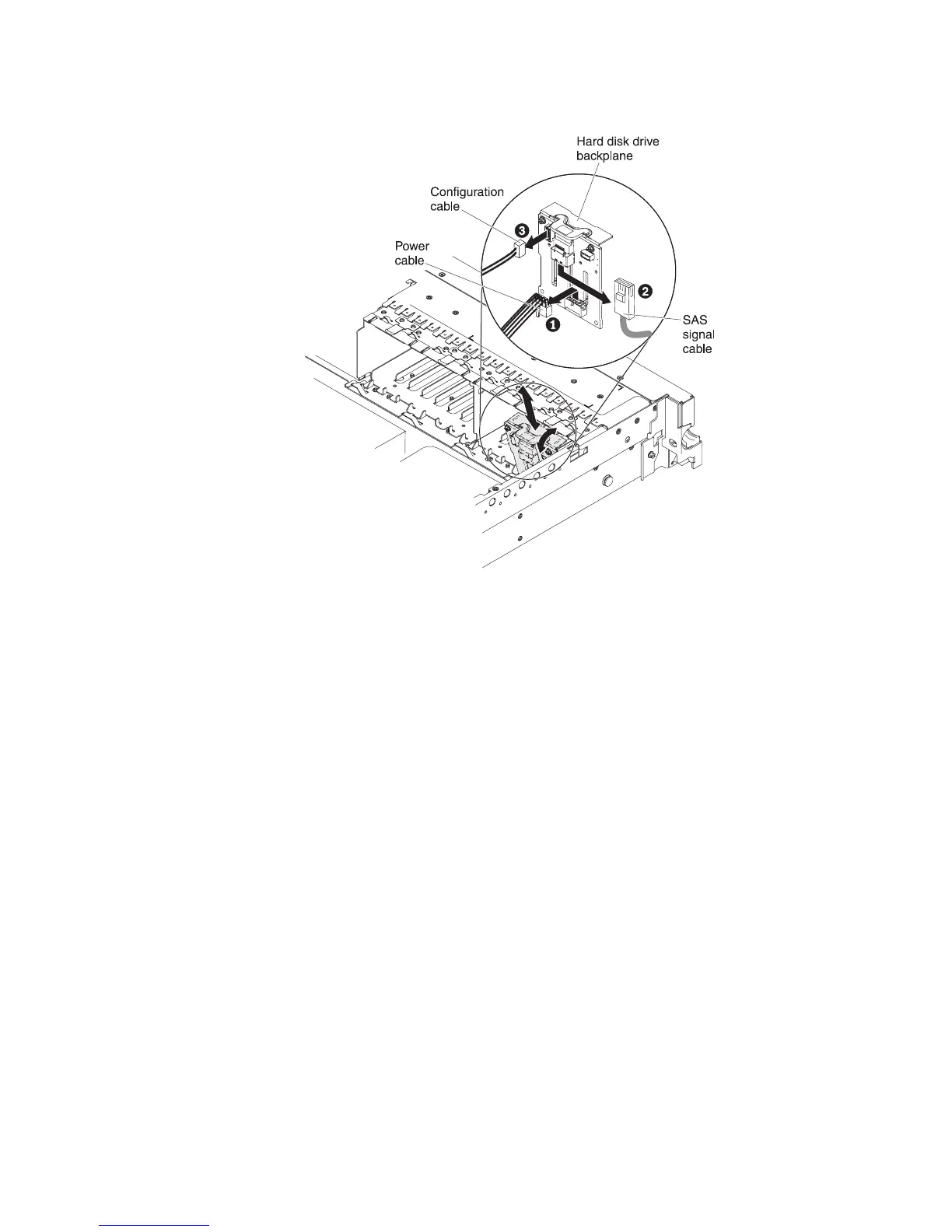

a. From backplane, disconnect the following cables in the order listed:
v Power cable 1
v SAS signal cable 2
v Configuration cable 3
b. Lift the backplane out of the server by pulling it toward the rear of the
server and then lifting it up.
12. Install the new backplane:
a. Move the SAS signal cable from the old hard disk drive backplane to the
new backplane 1. The new backplane comes with the option kit.
Chapter 2. Installing optional devices 65
