IBM System x3650 M3 4255 User Manual

b. Lift backplane 1 out of the server by pulling it toward the rear of the server
and then lifting it up.

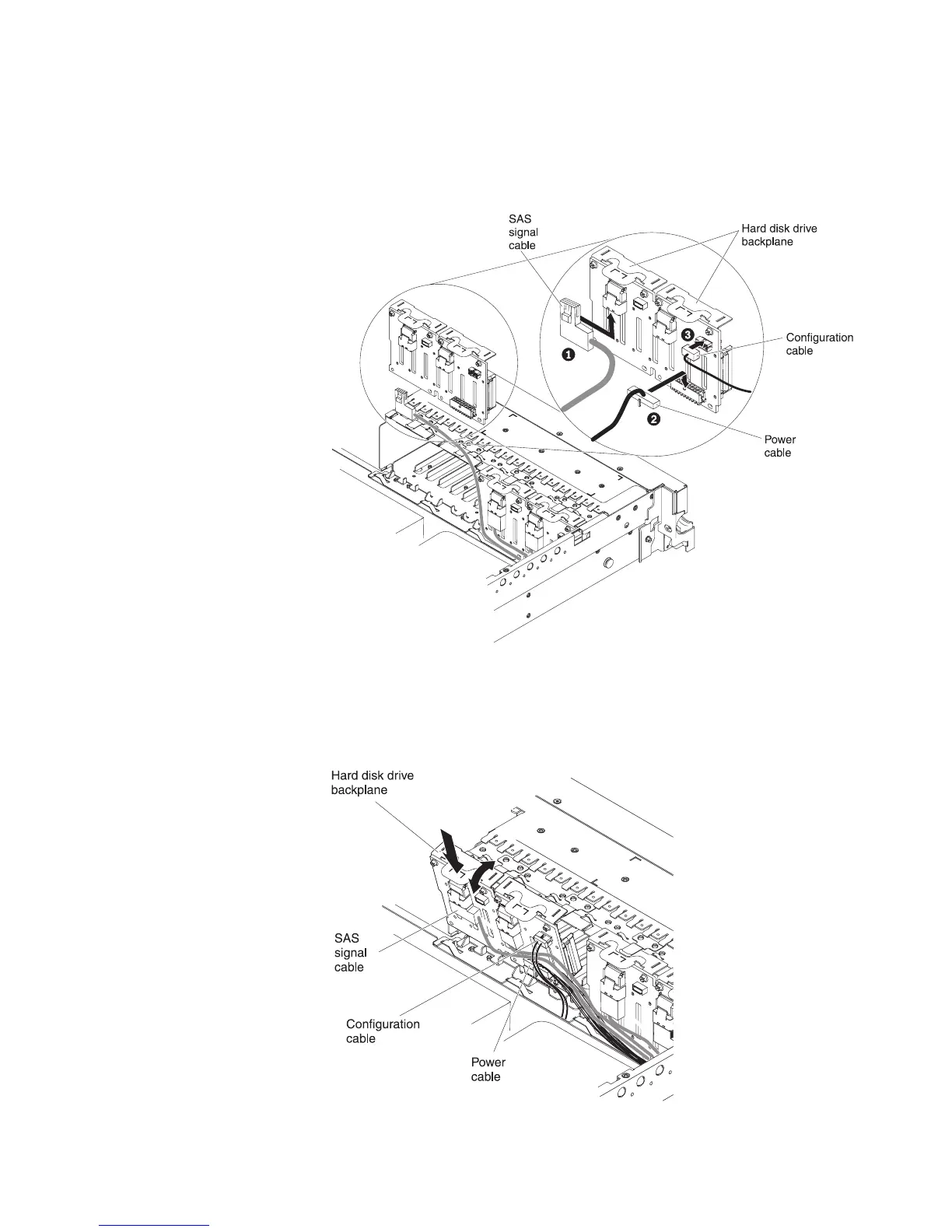

12. Install the new backplane in slot 2:
a. Move the SAS signal cable from hard disk drive backplane 1 to new
backplane 2 1. The new backplane comes with the option kit.
b. Connect the new power cable that comes with the option kit to new hard
disk drive backplane 2 2.
c. Connect the configuration cable to backplane 2 3.
d. Angle the new backplane and place the bottom edge into the slots for
backplane 2 on the chassis next to the optical drive.
Chapter 2. Installing optional devices 83

IBM System x3650 M3 4255 Specifications

General

Form Factor	2U Rack
Chipset	Intel 5520
Max Processors	2
Processor	Intel Xeon 5600 series
Memory	Up to 192GB DDR3
Network Interface	Dual-port Gigabit Ethernet
Hard Drive Bays	Up to 16 x 2.5" or 6 x 3.5"
RAID Support	RAID 0, 1, 10
Memory Slots	18 DIMM slots
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
