5
4
4
4

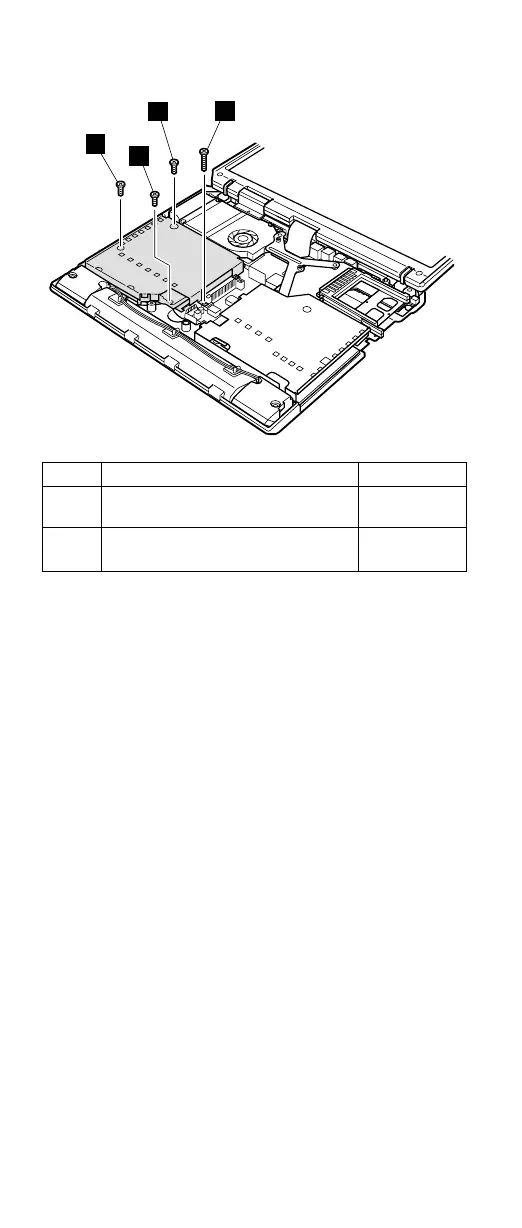

Step
Screw
(quantity)
T
orque
4
M2.5
×
16
mm,
nylon-coated
(1)
0.392
Nm
(4
kgfcm)
5
M2.5
×
4.8
mm,
nylon-coated
(3)
0.392
Nm
(4
kgfcm)
(continued)
Removing
and
replacing
a
FRU
96
ThinkPad
A30,
A30p
(MT
2652/2653/2654)
