43 IBPView
Installation
Insert the CD „IBPView“ into the CD-Drive. The installatio will start automatically. In case open the
directory „SETUP“ and start setup.exe. On then first menu select the language, the installation process is self
explaining.
Quickstart
On the CD „HDM97Pocket“ you will find templates for all versions of the HDM97Pocket . These templates
are prepared fort wo, three and four measuring channels. Do not use a template which is prepared for more
measuring channels than measuring channels meter has.
Disconnect USB
Before terminating the USB connection please terminate the IBPView software. Disconnecting with running
data acquisition may end in a system freeze.

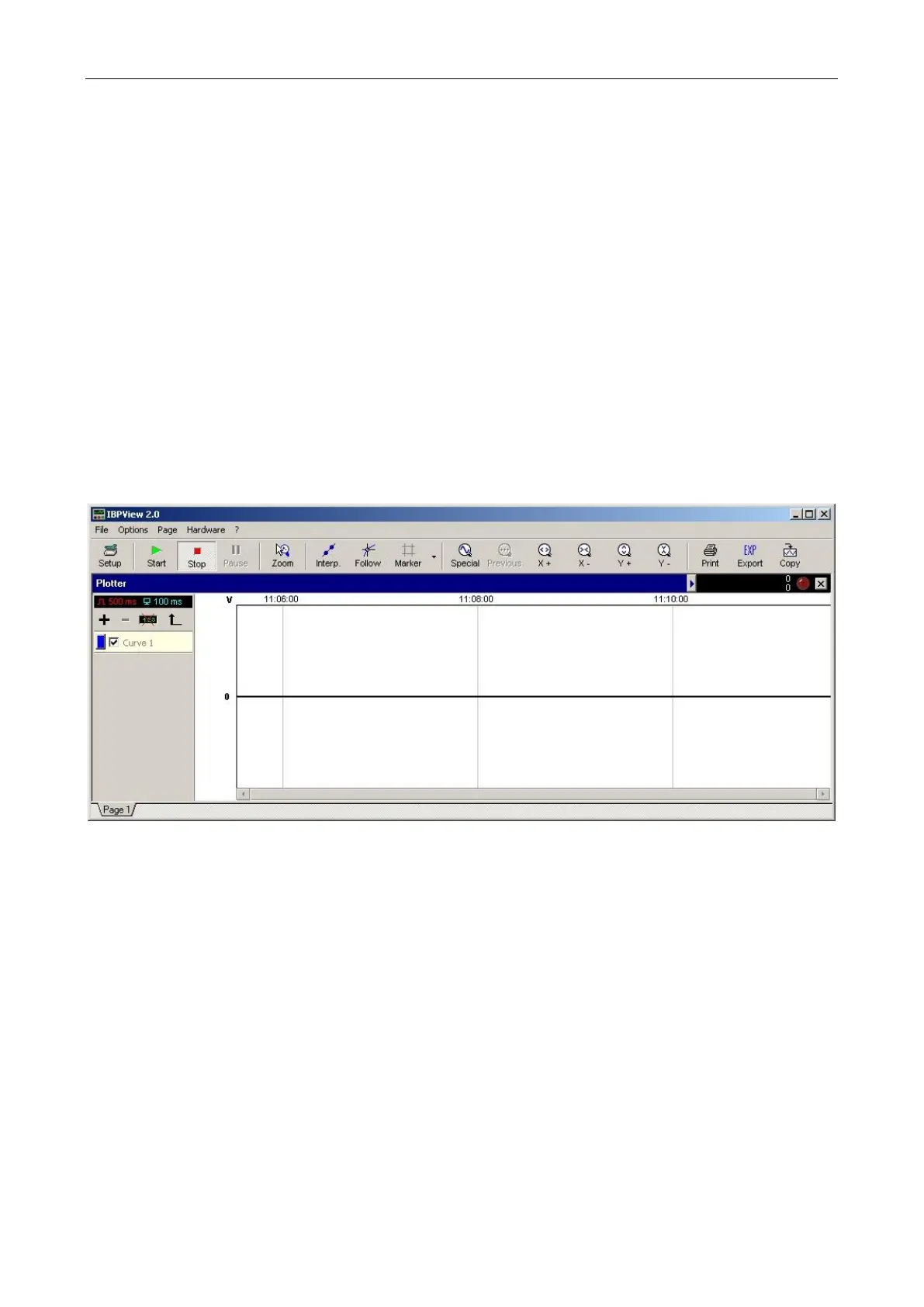

Main Window
General
This manual describes only the basic functions which are necessary to get familiar with IBPView. Further
information can be obtained using the Software's help function. IBPView is intentionally not limited to
HDM instruments. It can be configured independently and therefore achieves its maximum flexibility to be
ready for future IBP products.
Hardware Interface
IBPView uses serial COM ports for communication. This can be common RS232 serial interfaces like many
multimeters on the market use, or, like the HDM97Pocket virtual serial ports based on USB. Using virtual
COM ports it is necessary to define the number of the port once (COM1, COM2, COM3, etc.). The COM
port number of the hardware is defined automatically during the driver installation. The application must
know this number, in order to communicate with the device. For obtaining the number for the HDM97Pocket
please refer to chapter "Checking the driver installation". In this example "COM3" is used. Be aware that
connecting the HDM97Pocket to different physical USB receptacles will result in different COM port
numbers, one for each receptacle. This is done to make multiple HDM meters work with one computer
concurrently.
