Instruction Manual IMBus
f) In the third window the directory for IMB_Test can be selected.
Confirm by Next-Button.
g) In the forth window the folder in Start / Programme for IMB_Test can be selected.
Confirm by Next-Button.
h) The fifth window shows the installation settings for check and can be confirmed by Next-Button.
Now the Installation takes place !!!
2. Setup settings in IMB-Test Software
After the first start of the IMB_Test software the Setup-Button must be pressed.
!!! Note : The Setup window is part of all programmes listed under 9.1 ... 9.6.
!!! Note : On the IMB-usb the Windows device driver must be installed before opening the window ( see 4.3 )

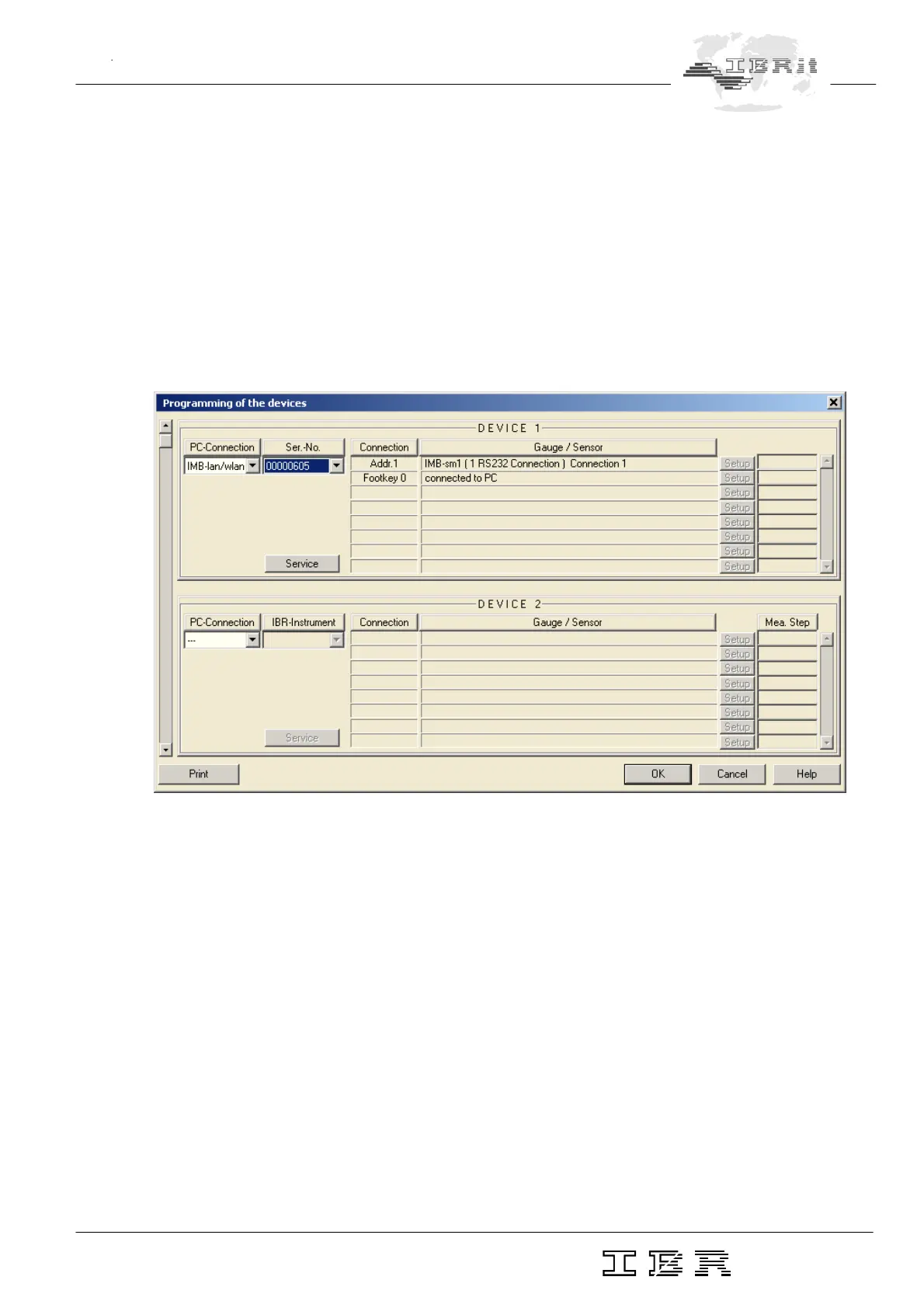

Select the PC-Connection ( i.e. COM 1, USB or IMB-lan/wlan ) and after that as IBR-instrument
the IMBus or as Ser-No. the serial number of your IMB-lan / IMB-wla connection module.
After the selection of the PC connection and the IBR-instrument the columns Connection and
Gauge / Sensor are automatically filled by the found IMBus modules and the addresses are
automatically assigned to the IMBus modules.
Leave the setup window by OK.
