18
Instruction Manual IMBus

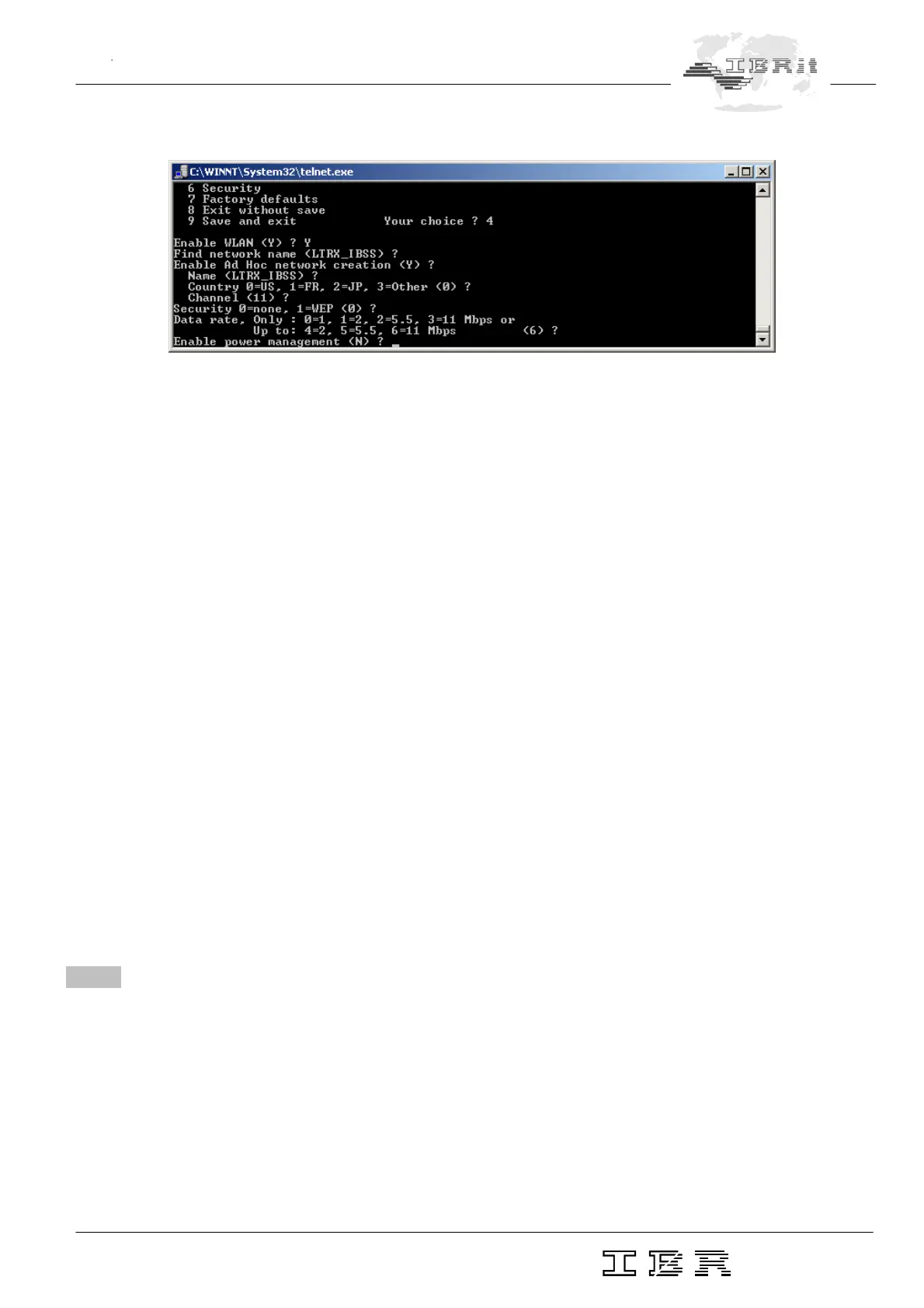

- Telnet Menu „WLAN“ :
Enable WLAN :
By this menu point the WLAN interface of the IMB-wla module is activated / deacti-
vated. This menu point MUST be set in any case to „Y“.
Find Network Name :
Network name of IMB-wla module
Enable Ad Hoc Network Creation :
Settings of Ad Hoc Network ( Network Name, Country and WLAN-
Channel ). On deactivation an Infrastructure network is activated.
Security :
Activation of WEP
Data Rate :
WLAN data rate
Power Management :
Activation of the Power Management
The Power Management MUST not be activated.
Note : Be careful with these WLAN settings because a RESET to default
settings is only possible by demounting the IMB-wla in the factory.
- Telnet Menus „Channel 1“,Channel 2“, „E-Mail“, „Expert“, „Security“ and „Factory Defaults“ :
These settings must not be changed !!!
5. Short description : Configuration of IMB-wla modules for network connection by a notebook
- Set IP-Address of Notebook to i.e. 169.254.100.100
- The IMB-wla module must be found after power-on as W-LAN Network „LTRX_IBSS“ on the Notebook
!!! Note :
- On the Notebook the usage of Ad-hoc networks must be activated.
- Install IMB_Test and open the Setup-Window
- By Telnet the IMB-wla module can be configured
4.6 Start-up of IMB-pb connection modules
1. Advantages of Profibus-interface :
- Standard interface for the connection of devices to PLC control units.
- Simple implementation of IMB-pb modules in a PLC-software.
2. Electrical connection :
- Connect the IMB-pb module to IMBus as described under 2.3.
- Connect Profibus connection cable ( is NOT part of the shipment ) to IMB-pb module.
- Switch IMB power supply module on.
