Instruction Manual IMBus

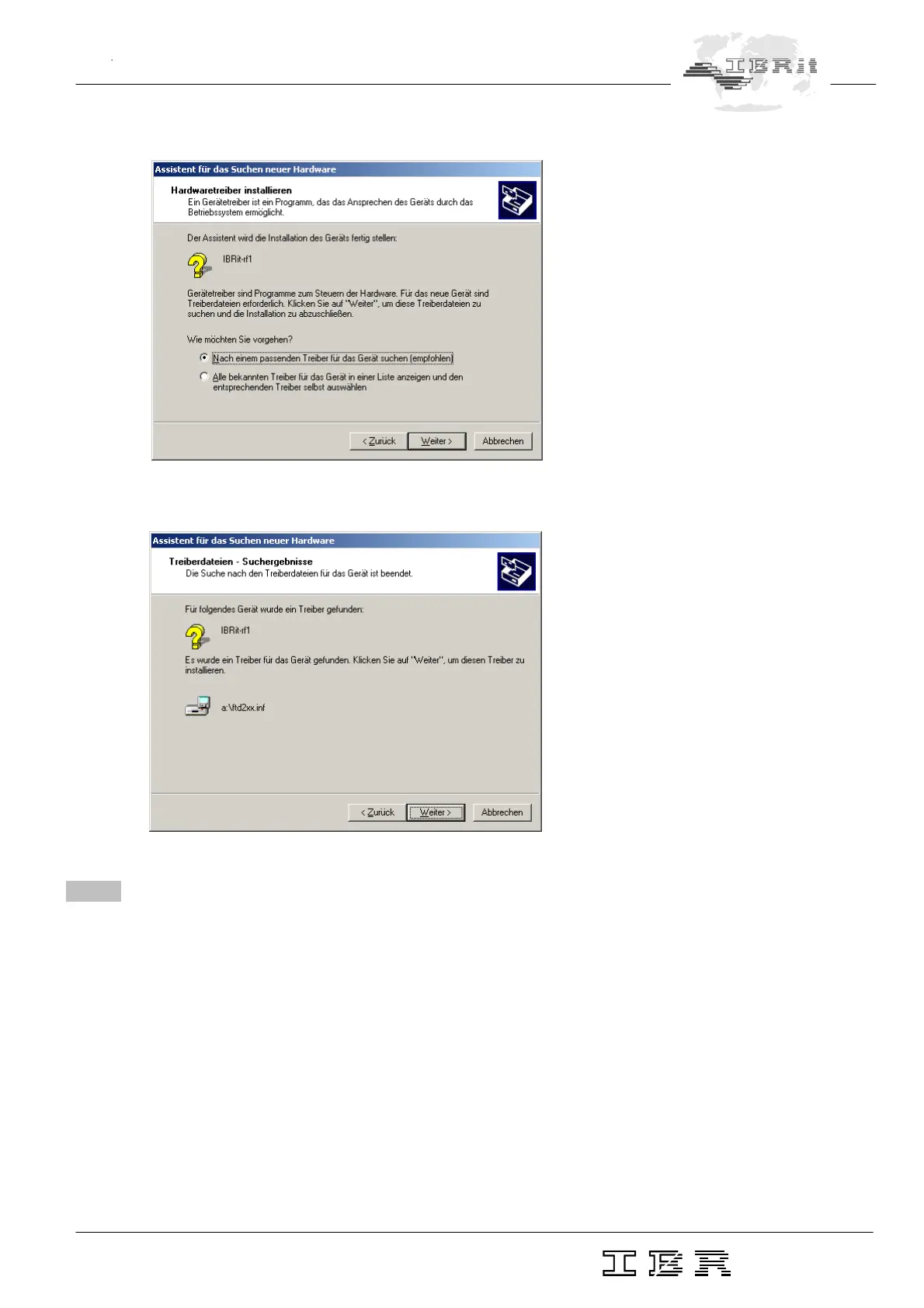

b) Select the option Search driver :
c) Select CD-ROM drive as data source and confirm the window by Next> Button.
d) The driver is searched on the CD :
e) By clicking on the OK Button the installation is started.
4.4 Start-up of IMB-lan connection modules
1. Advantages of LAN-interface :
- Standard interface for connection of devices in a network.
- Simple connection of IMBus on the usage of Terminal Servers, because the mapping of i.e. COM-
Ports is not required.
2. Electrical connection :
- Connect the IMB-lan module to IMBus as described under 2.3.
- Connect the IMB-lan module to network with the correct cable.
There are two different cables in the shipment :
- Cable with green connectors Î Cross-Over-Cable for direct connection to a stand-alone PC
- Cable with grey connectors Î 1-to-1-Cable for connection to a Switch, Hub, Router, ...
- Switch IMB power supply module on.
