25
Instruction Manual IMBus
Electrical characteristics “Output”
Operating voltage 12 V ... 32 V DC
Max. output current 1 A per channel
On – state resistance RON 200 mΩ
Current limitation 4 A

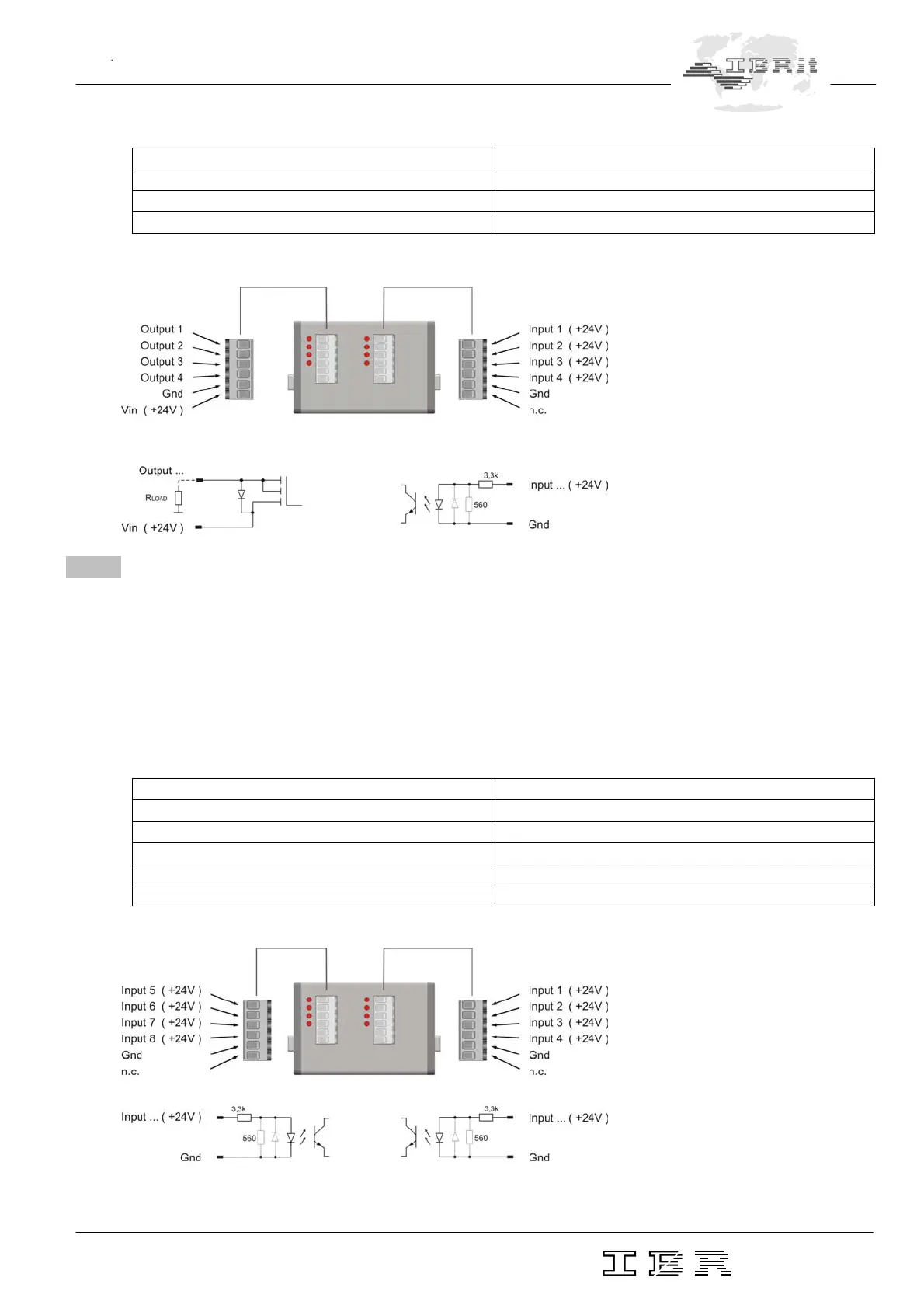

3. Wiring :
6.2 IMB-ci8
1. Short description :
- The IMBus input and output modules are all galvanically ( 2kV ) separated.
- The inputs are compatible to PLC optocoupler inputs and work in a wide voltage area.
- Each in-/output contains a state LED.
- The connections are done by plugable terminal strips.
2. Technical data :
Electrical characteristics “Input”
Nominal input voltage 24 V DC
Input voltage signal “High” 13 V … 30 V
Input voltage signal “Low” -30 V ... + 5 V
Input current signal “High” typ. 7 mA
Connection of 2-wire-BEROS is possible max. current 1,5 mA
Isolation voltage 2000 V
3. Wiring :
