7. Technical data of IMBus modules

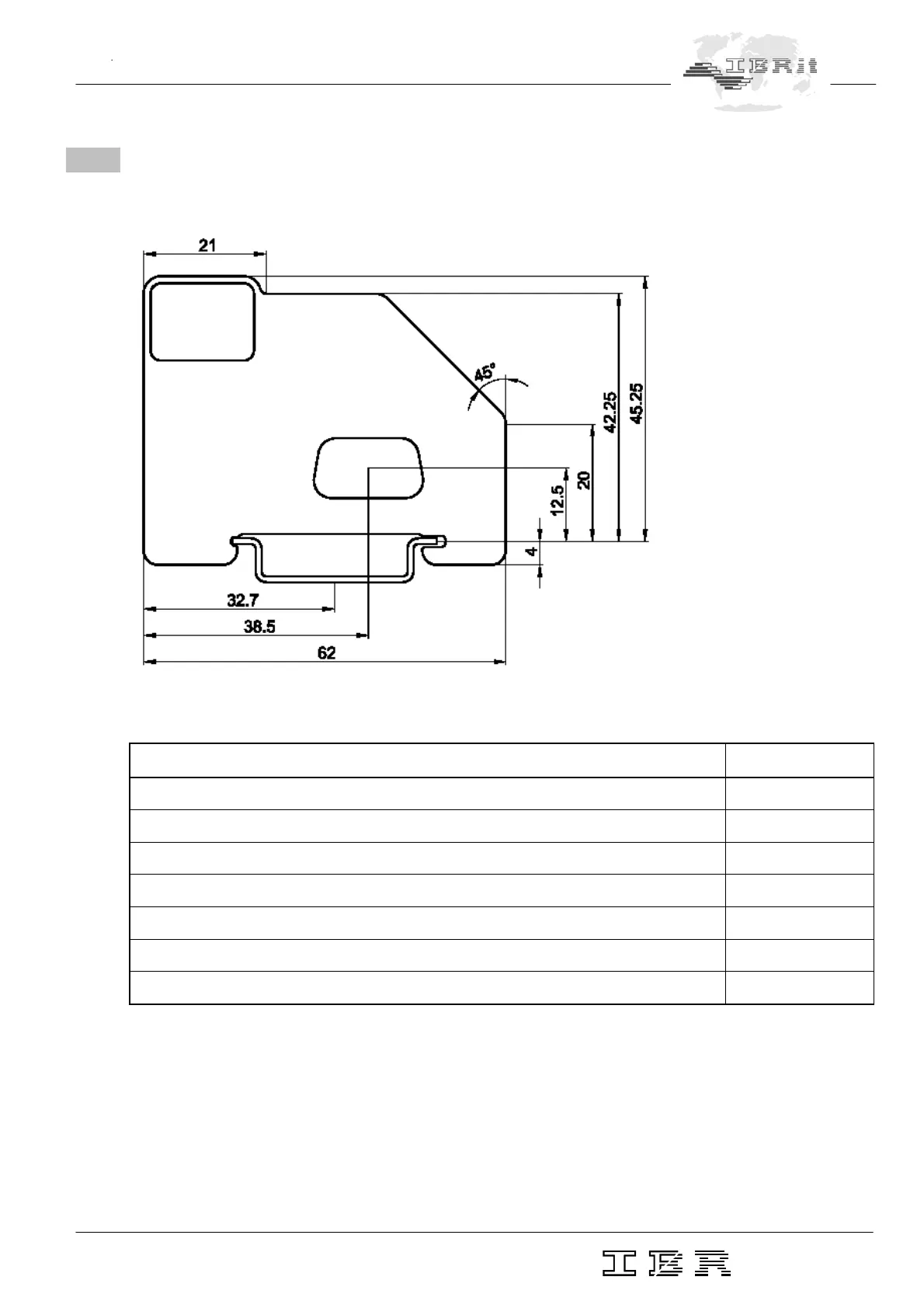

Mechanical sizes :
Width of the different module types :
IMBus – Module type Module width
IMB-dm1, IMB-tc1, IMB-pm1, IMB-sm1 25 mm
IMB-im1, IMB-ai1 37,5 mm
IMB-lan, IMB-wla, IMB-im2, IMB-dm2, IMB-tc2, IMB-ae1, IMB-ai2, IMB-mi2, IMB-sm2 50 mm
IMB-ps2, IMB-dc1, IMB-io4, IMB-ci8, IMB-co8 75 mm
IMB-im4, IMB-dm4, IMB-tc4, IMB-ai4, IMB-mi4, IMB-sm4 87,5 mm
IMB-acc, IMB-pc1 100 mm
IMB-im8, IMB-mi8, IMB-ai8 162,5 mm
