Instruction Manual IMBus
IMB-im1/2/4/8 : ( Measuring modules for connection of inductive probes )
Supported inductive probe types All manufacturers and types
Standard : Tesa Halfbridge and compatible
Frequency, Input impedance, ... Corresponding to the probe specifications
Resolution / measuring range 16 Bit
+/- 3,0 mm on 0,1 µm
+/- 30,0 mm on 1 µm
Measuring rate 1800 Measuring values / sec / channel
Temperature drift Gain < 0.005 % / K
Temperature drift Zeropoint < 0.002 % / K
Operation temperature range 0 ... 45 °C
Storage temperature range -20 ... 80 °C

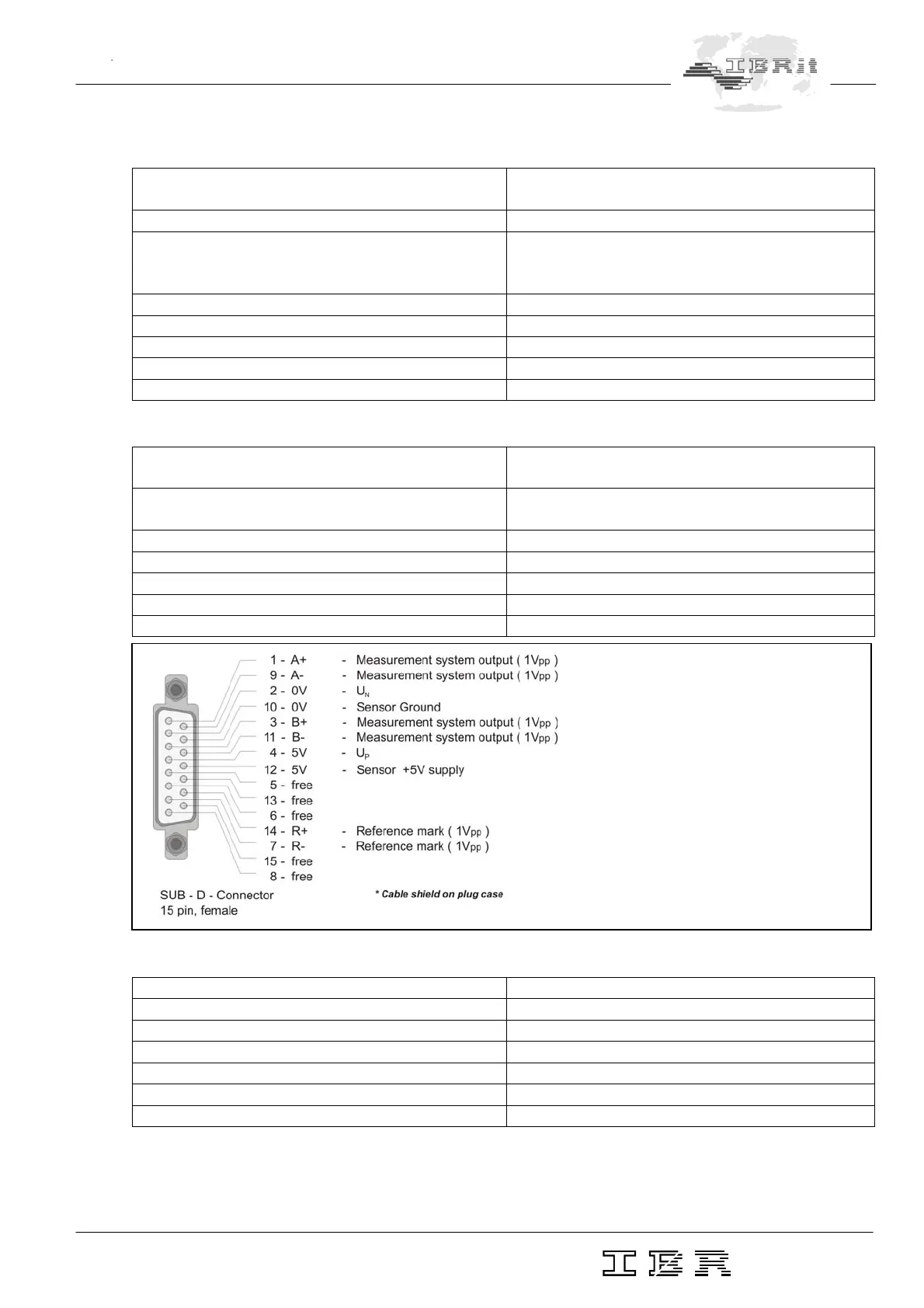

IMB-dm1/2/4 : ( Measuring modules for connection of incremental measuring systems [ 1Vpp ] )
Supported interfaces 1 Vpp
11 µA ( by adapter cable )
Exploitation 200 times
( Example : 0,1 µm on 20 µm period )
Counter 24 / 32 Bit ( for- / backward counter )
Measuring rate 1600 Measuring values / sec / channel
Reference mark / Failure signal Activatable / Deactivatable
Operation temperature range 0 ... 45 °C
Storage temperature range -20 ... 80 °C
IMB-tc1/2/4 : ( Measuring modules for connection of incremental measuring systems [ TTL ] )
Supported interfaces TTL ( RS422 )
Impulse width > 70 nsec
Counter 24 / 32 Bit ( for- / backward counter )
Measuring rate 1600 Messwerte / sec / Kanal
Reference mark / Failure signal Activatable / Deactivatable
Operation temperature range 0 ... 45 °C
Storage temperature range -20 ... 80 °C
